Bauer Coupling Other

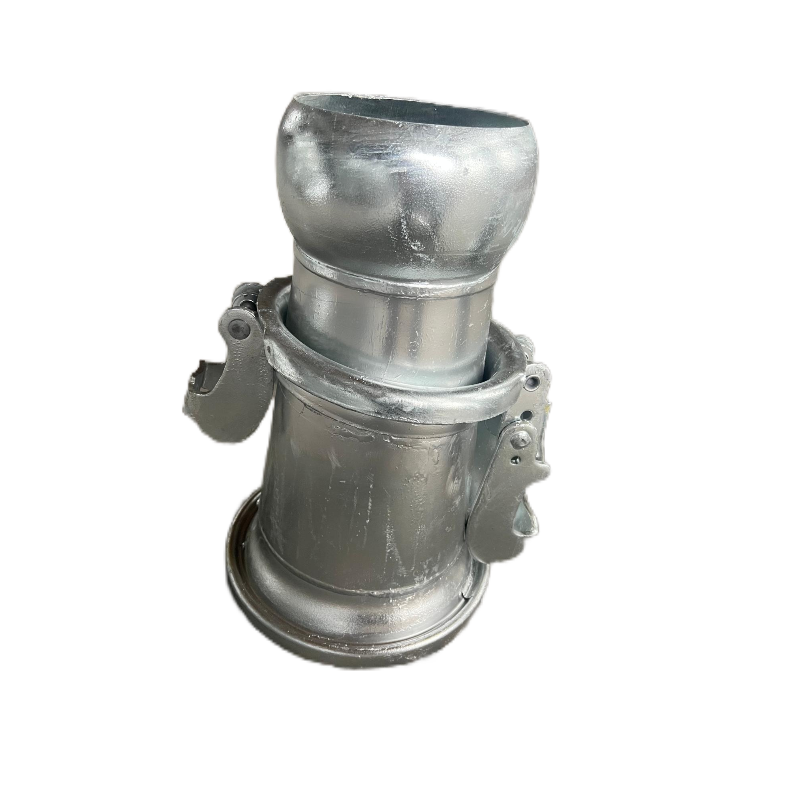

Product name: Bauer Coupling Other
Composition method: three-way, four-way, Y-shaped, large and small head, etc
Process: casting
Surface treatment: hot dip galvanizing
Dimensions: 2” 3” 4” 6” 8”
Packaging: carton or iron pallet
Standard: in line with international standards
Customization supported: OEM, ODM
Application: connection of large farm irrigation equipment and drainage equipment

Availability:



Inquire Add to Basket

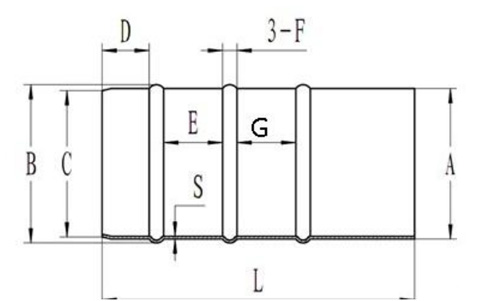

Detailed list of shell specifications

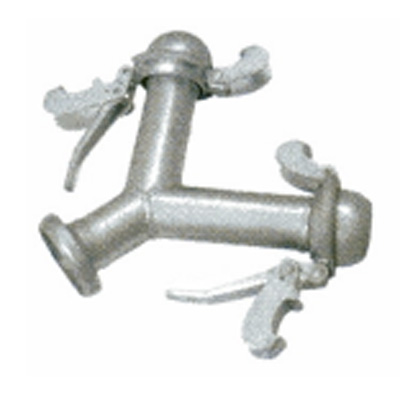

Bauer coupling derivatives have three-way, four-way, Y-type, large and small head products. The main material is carbon steel pipe, which can be used for a longer time after hot galvanizing treatment. It can be specially customized according to different requirements.


SIZE	L	A	B	C	D	E	G	F	S	Weight (kg)	Prices (Yuan)
2”	112	50	54	47	18	19		15	2		8.15
3”	132	76	80	73	28	25		15	2		12.55
4”	194	99	103.5	94	33	30	30	15	2		24.1
5”	215	125	130.5	120	30	33	33	17	2		32.57
6”	215	150	154	145	33	35	35	15	2		42.78
8”	250	200	205	195	43	45	45	15	2		71.25
10”	275	250	255	245	45	40	40	19	2.5		145
12”	305	300	305	300	59	48	48	25	2.5		192

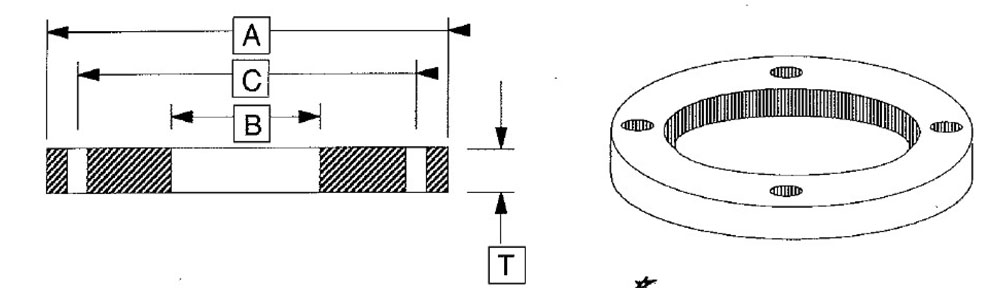

FLANGE SIZE(mm)

	A	B	T	C	No. of Bolt Holes	Dia of bolt holes	Weight (kg)
2"	ø150	50	10	114	4	18	1.1
3"	ø185	80	11	146	4	18	1.7
4"	ø215	100	13	178	8	22	2.7
6"	ø280	150	17	235	8	22	5.3
8"	ø335	200	19	292	8	24	7.5

Q How about our products?

A Our products are famous for the good quality and we will check it before shipment.
Q How about delivery?

A
We can send to you by sea/air/express according to you, usually deliver within 15-25 working days after receive deposit.
Q DO you provide sample? Is it free or extra?

A Yes, we could offer the sample for free charge if the quantities is not more, but do not pay the cost of freight.
Q What is the minimum order quantity? (MOQ)

A Usually our MOQ is 800 Pieces, but for first cooperation we also accept smaller order.
Q Can I have my own customized product?

A
Yes, we can supply logo Print and package designed based in our MOQ.
Q What is your payment term?

A T/T 30% payment in advance, balance to be paid before shipment. Or L/C. Or West Union.
