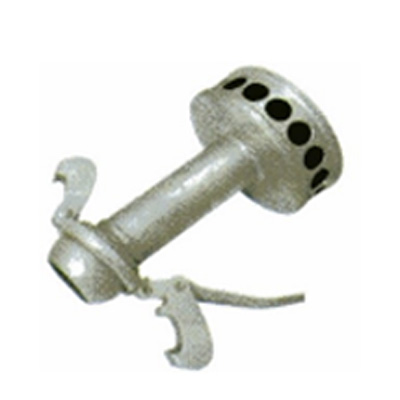

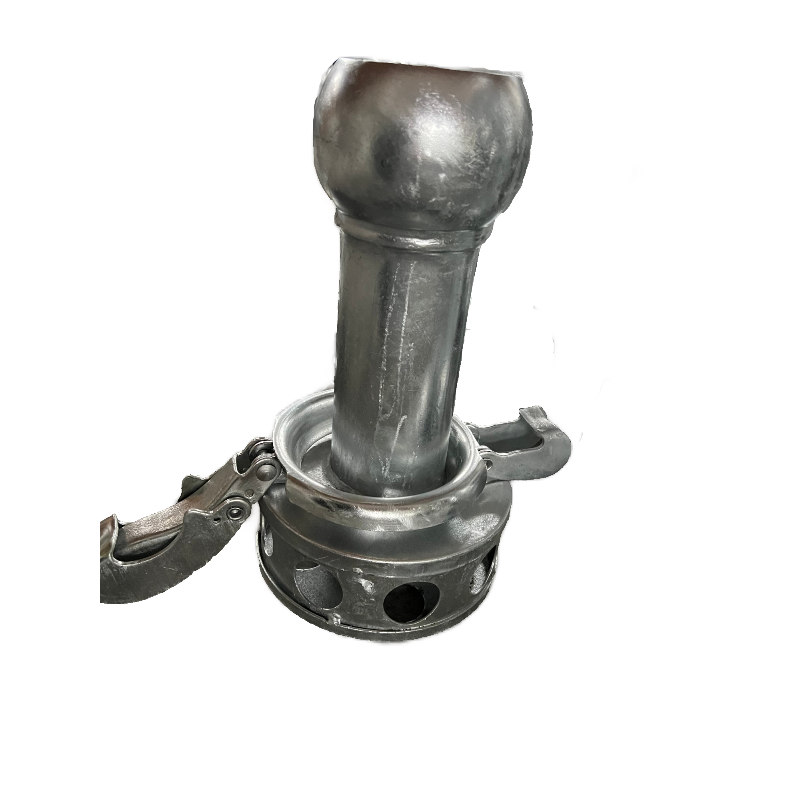

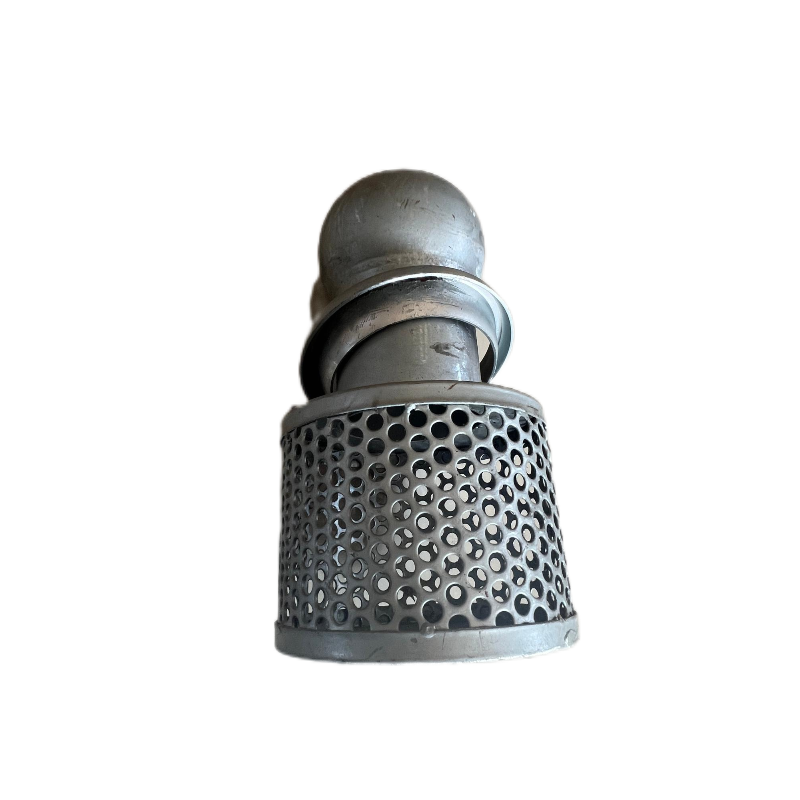

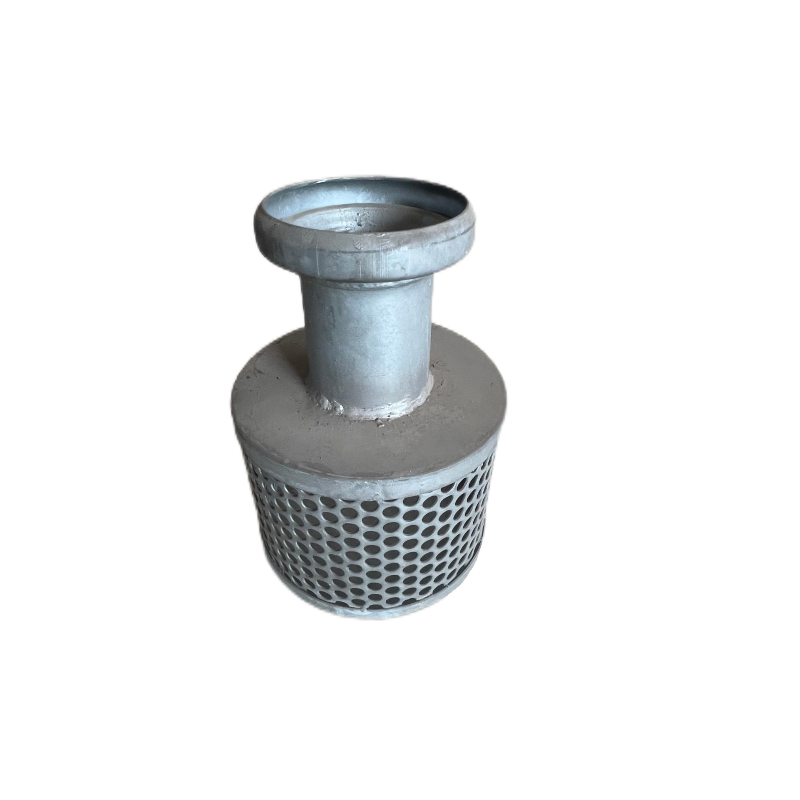

Bauer Coupling with Strainer

Product name: Bauer Coupling with Strainer
Composition: Male half set with filter screen, female half set with filter screen, buckle and rubber ring
Process: casting
Surface treatment: hot dip galvanizing
Dimensions: 2” 3” 4” 6” 8”
Packaging: carton or iron pallet
Standard: in line with international standards
Customization supported: OEM, ODM
Application: connection of large farm irrigation equipment and drainage equipment

Availability:



Inquire Add to Basket

Detailed list of shell specifications

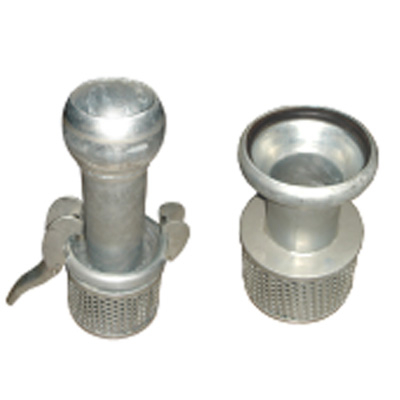

Bauer coupling with strainer is mainly composed of a male half with a strainer, a female half with a strainer, a snap ring, and a rubber seal. Made primarily from carbon steel pipes, it undergoes hot-dip galvanizing treatment to extend service life while offering convenient installation and replacement for eco-friendly maintenance. Available in standard sizes ranging from 2 "to 8", the product can also be custom-made according to specific requirements.

Outer diameter and inner tooth size of dust cover tube Unit: mm
specifications	Pipe				Internal teeth
	A+H	A	B	I	C	D	E	F	J	G	H
	Pipe to the bottom	Pipe length	Pipe thickness	Pipe outside diameter	Outer diameter of dental canal	Total length of dental canal	Extension of dental canal	Filter aperture	Filter hole spacing	Outer diameter of the body	Body height	Filter thickness
1″		50	1.5			19	8
1-1/2″	150	60	2	38	53.5	20	8	9.5	13	125	90	1.2
2″	161	60	2	50	63.5	19.5	8	9.5	13	151	101	1.2
2-1/2″	182	80	2.5	64	76	23	8	9.5	13	151	102	1.2
3″	243	110	3	76.2	95	24	8	9.5	13	177	133	1.2
4″	253	120	3	102	119	26	8	9.5	13	177	133	1.2
6″	408	178	5	153	178	27	14	25	32	230	230	1.6
8″	514	229	6	203	232	42	18	25	32	283	285	2
10〞										320	320	2
12″										400	400	2
