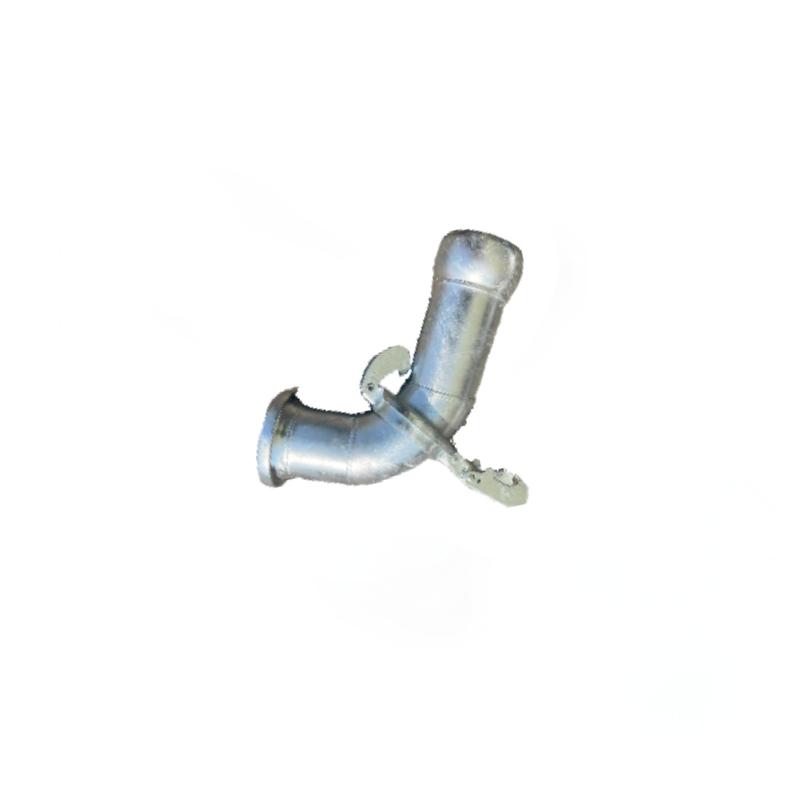

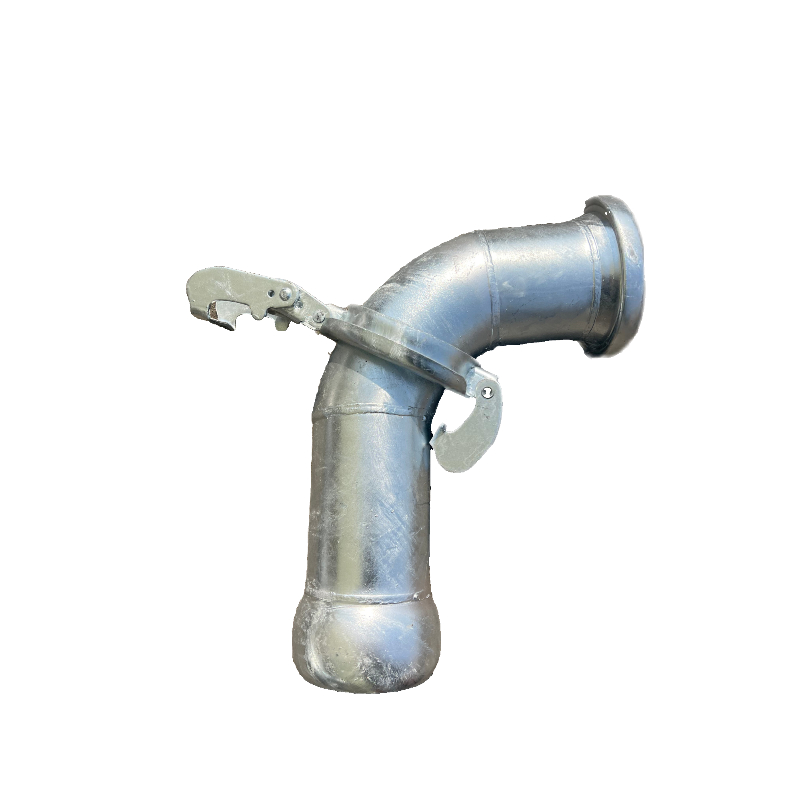

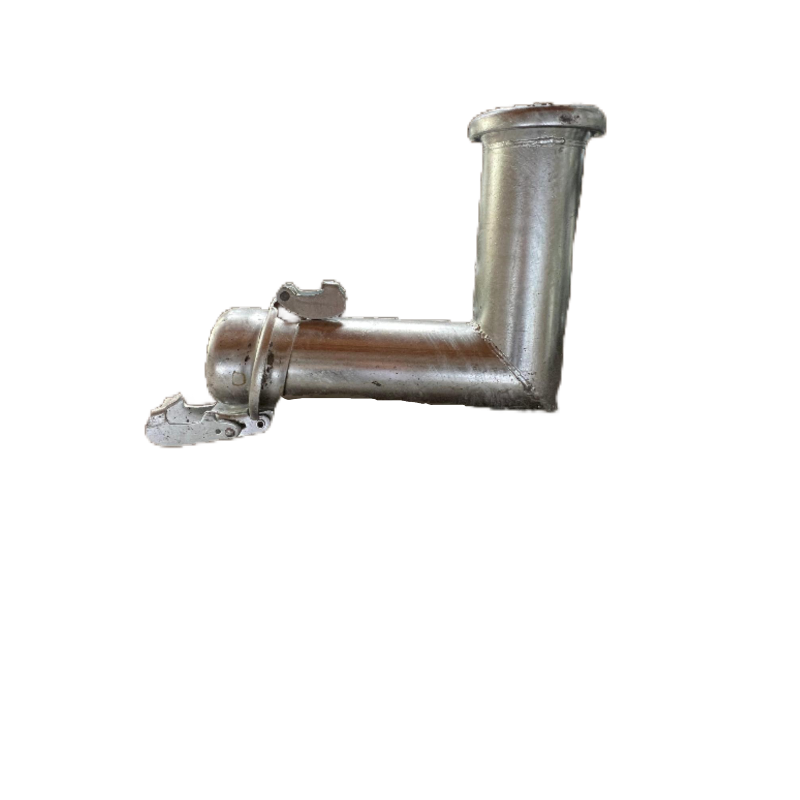

Bauer Coupling Elbow

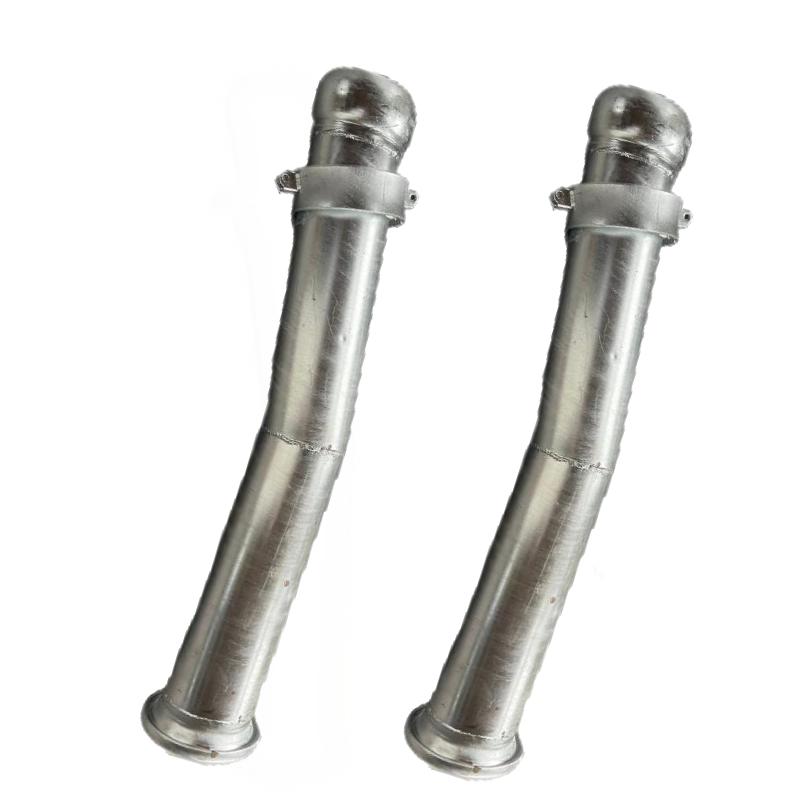

Bauer coupling long pipe is mainly composed of male and female halves with angled connectors. Made from carbon steel pipes treated with hot-dip galvanizing for extended durability, this eco-friendly solution features easy installation and replacement. Available in 2 "to 8" sizes with standard angles of 30°,45°, and 90°, it can also be custom-made according to specific requirements. Primarily used for connecting large-scale agricultural irrigation systems and equipment.

Specification	A	B	C	D	S	A	B	C	D	S	A	B	C
2”	166	54	112	51	2	55	52	50	70	1.2	182	62	130
3”	198	80	132	77	2	66	78	78	99	1.2	229	83	187
3-1/2”	213	90	140	87	2	84	89	86	120	2	230	110	202
4”	292	103.5	194	100	2	103	108	110	144	2	282	119	243
6”	319	154	215	150	2	100	154	150	179	2	340	168	310
8”	372	205.5	250	200	2	121	196	200	229	2	340	235	365
Specification	A	B	C	D	S	A	B	C	D	S	A	B	-
2”	146	54	112	51	2	34	50	71	83	1.2	81	9.5
3”	164	80	132	77	2	35	78	100	116	1.5	114	13
3-1/2”	180	90	135	87	2	55	86	124	137	2	138.5	14
4”	250	103.5	194	100	2	60	99	147	168	2	164	14
6”	275	154	215	150	2	60	150	182	210	2	210	19
8”	320	205.5	250	200	2	75	195	236	265	2.5	255	18

Note:  The outer diameter of the pipe has a tolerance of ±0.3~0.5
