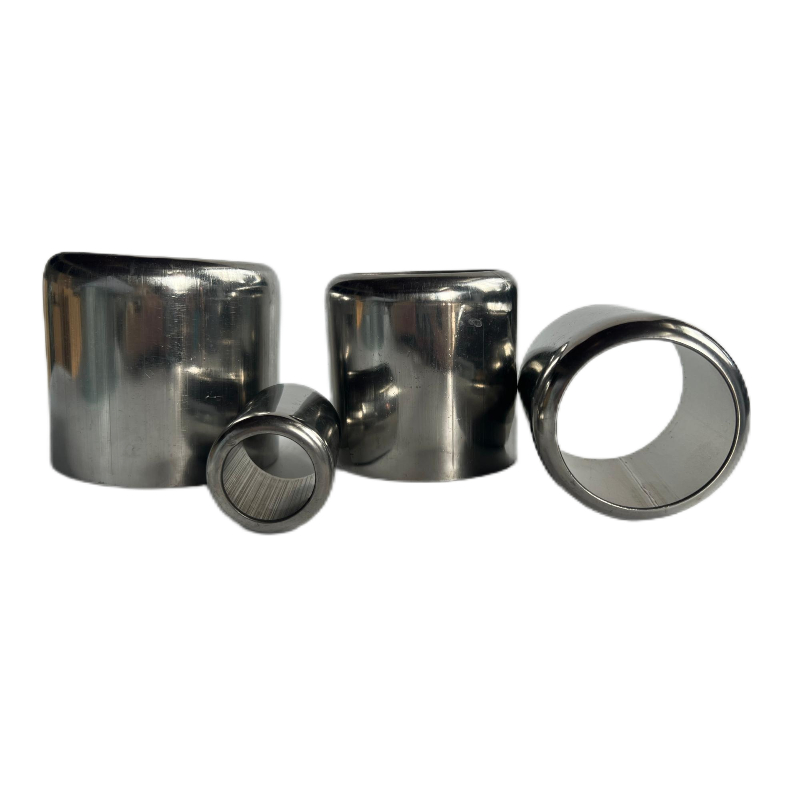

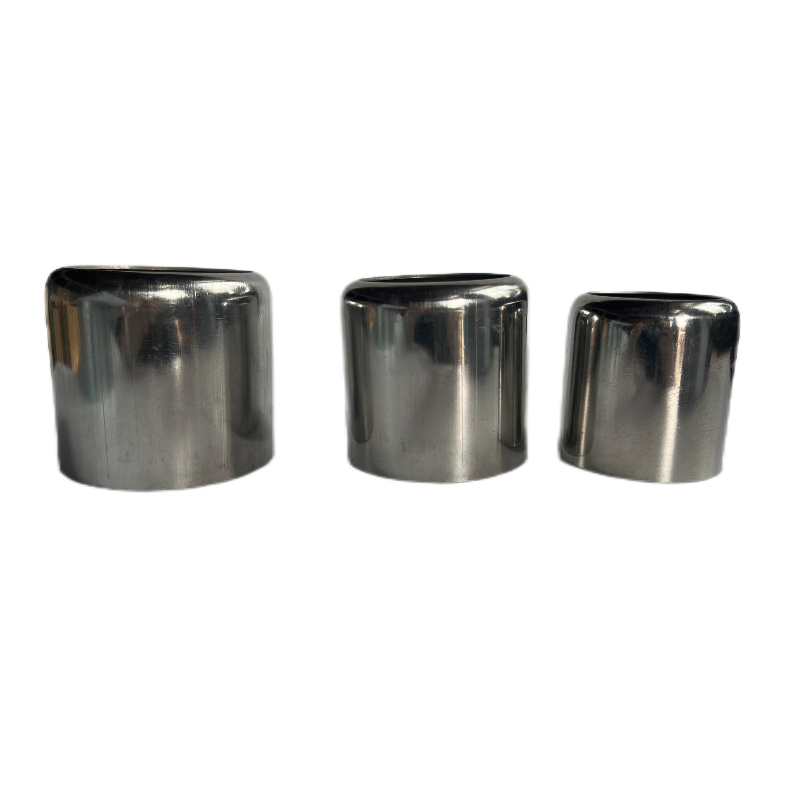

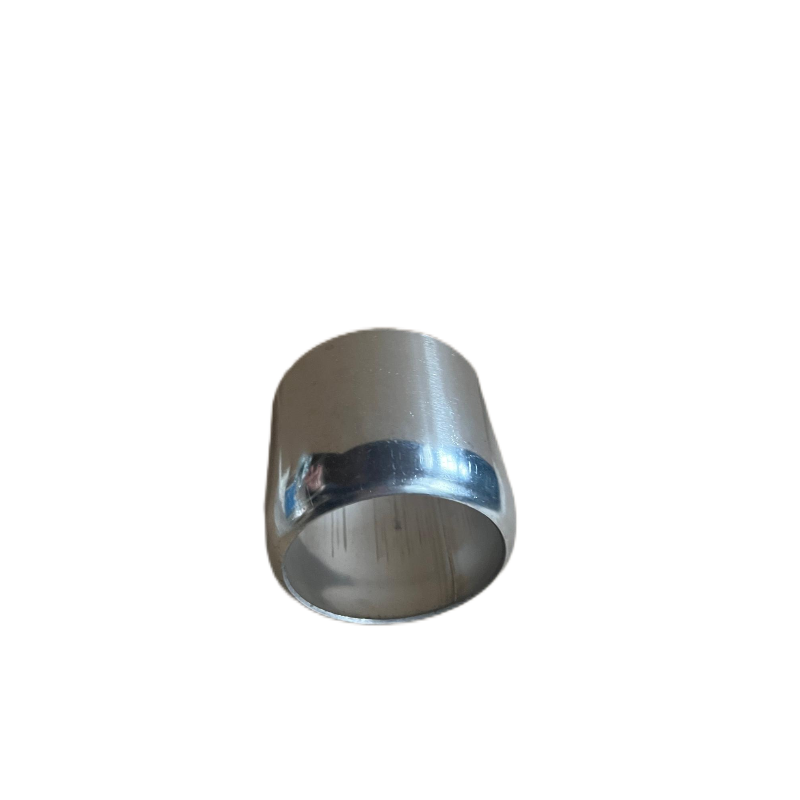

The round clamp DF-6 is primarily made of stainless steel and cold galvanized carbon steel. The stainless steel and cold galvanized treatment ensures a smoother surface, extended service life, and reduced deformation. Customizable in dimensions and materials according to specific requirements is currently available. This product is mainly used for water hose connectors and rubber hose interfaces.
 | ||||||

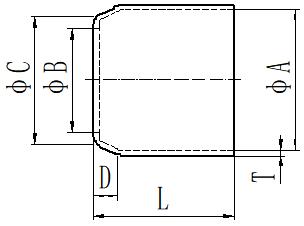

| specifications | A | B | C | D | L | T |
| 1’’ | 45 | 31 | 41 | 15 | 47 | 1.5 |
| 1-1/2’’ | 57 | 41 | 51 | 10 | 56 | 1.5 |
| 2’’ | 72 | 55 | 69 | 17 | 66.5 | 2 |
| 2-1/2’’ | 85 | 68.3 | 80 | 17 | 71 | 2 |
| 3’’ | 98 | 83 | 94 | 17 | 85 | 2 |
| 4’’ | 123 | 105.5 | 119 | 17 | 100 | 2 |
 |  |  |
 |  |  |
The round clamp DF-6 is primarily made of stainless steel and cold galvanized carbon steel. The stainless steel and cold galvanized treatment ensures a smoother surface, extended service life, and reduced deformation. Customizable in dimensions and materials according to specific requirements is currently available. This product is mainly used for water hose connectors and rubber hose interfaces.
| ||||||
| specifications | A | B | C | D | L | T |
| 1’’ | 45 | 31 | 41 | 15 | 47 | 1.5 |
| 1-1/2’’ | 57 | 41 | 51 | 10 | 56 | 1.5 |
| 2’’ | 72 | 55 | 69 | 17 | 66.5 | 2 |
| 2-1/2’’ | 85 | 68.3 | 80 | 17 | 71 | 2 |
| 3’’ | 98 | 83 | 94 | 17 | 85 | 2 |
| 4’’ | 123 | 105.5 | 119 | 17 | 100 | 2 |
| | |
| | |
