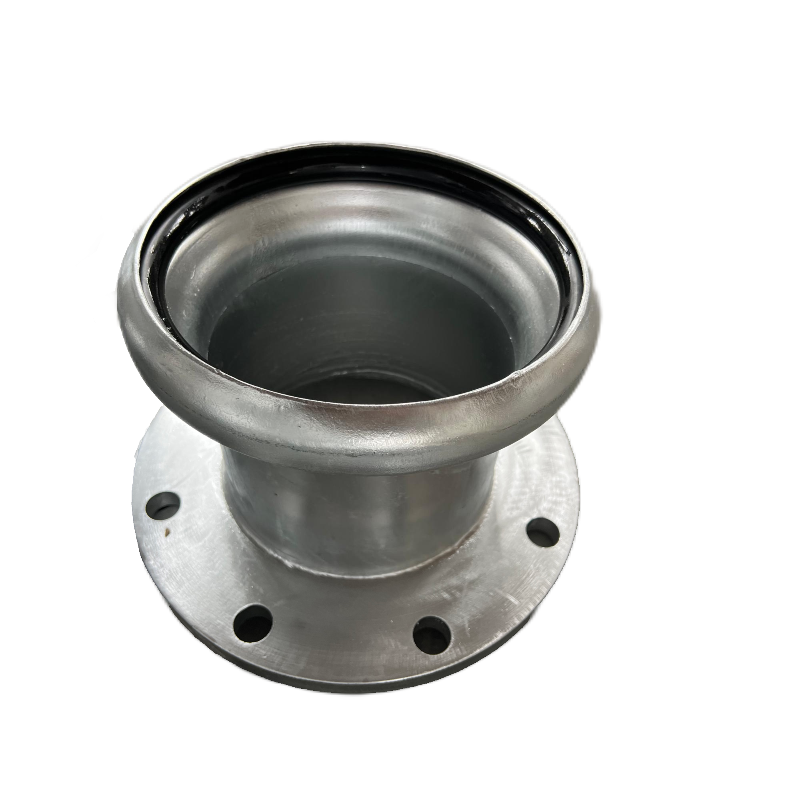

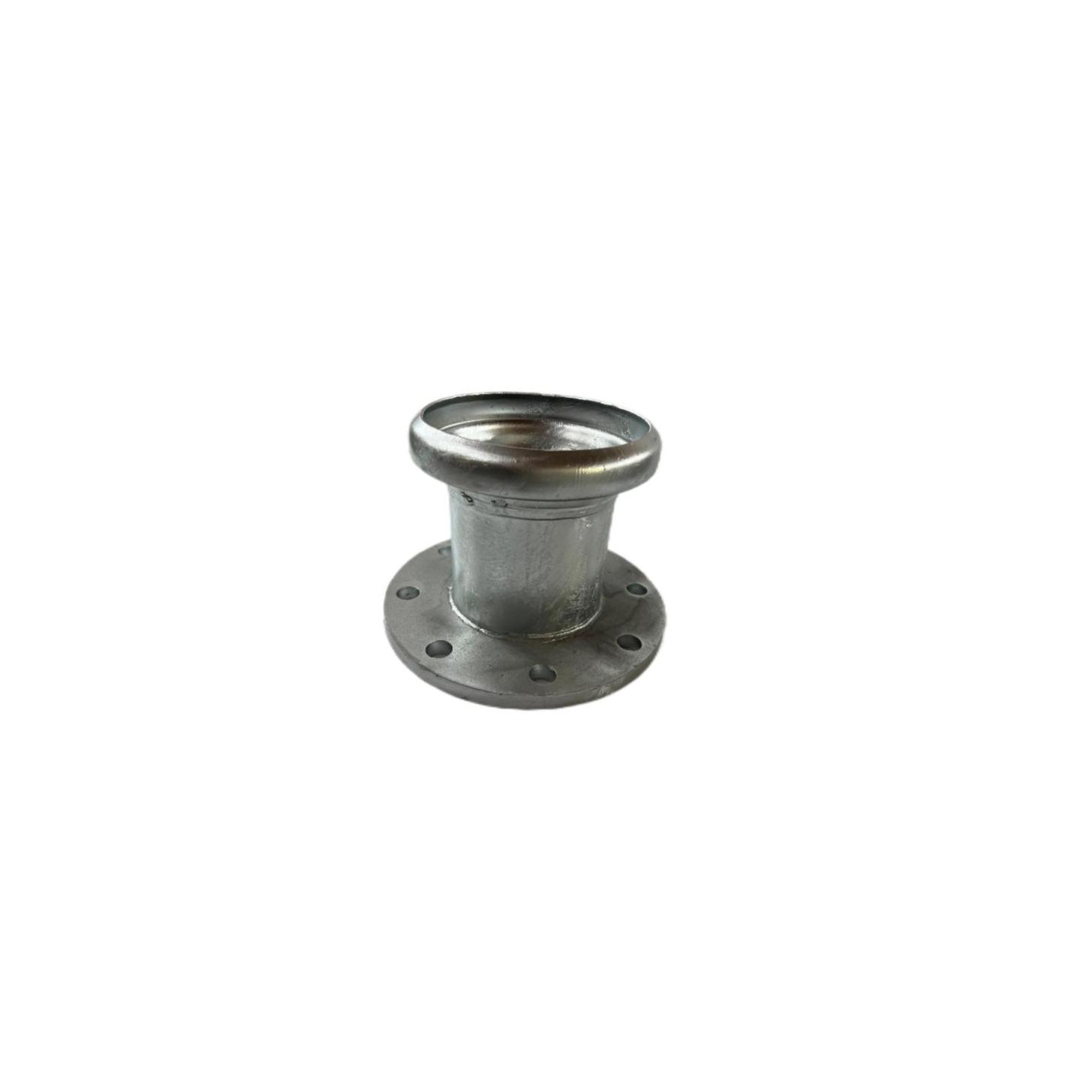

Bauer Coupling with Flange

Product name: Bauer Coupling with Flange
Composition: Equipped with flange male half group, flange female half group, ring buckle and rubber ring
Process: casting
Surface treatment: hot dip galvanizing
Dimensions: 2” 3” 4” 6” 8”
Packaging: carton or iron pallet
Standard: in line with international standards
Customization supported: OEM, ODM
Application: connection of large farm irrigation equipment and drainage equipment

Availability:



Inquire Add to Basket

Detailed list of shell specifications

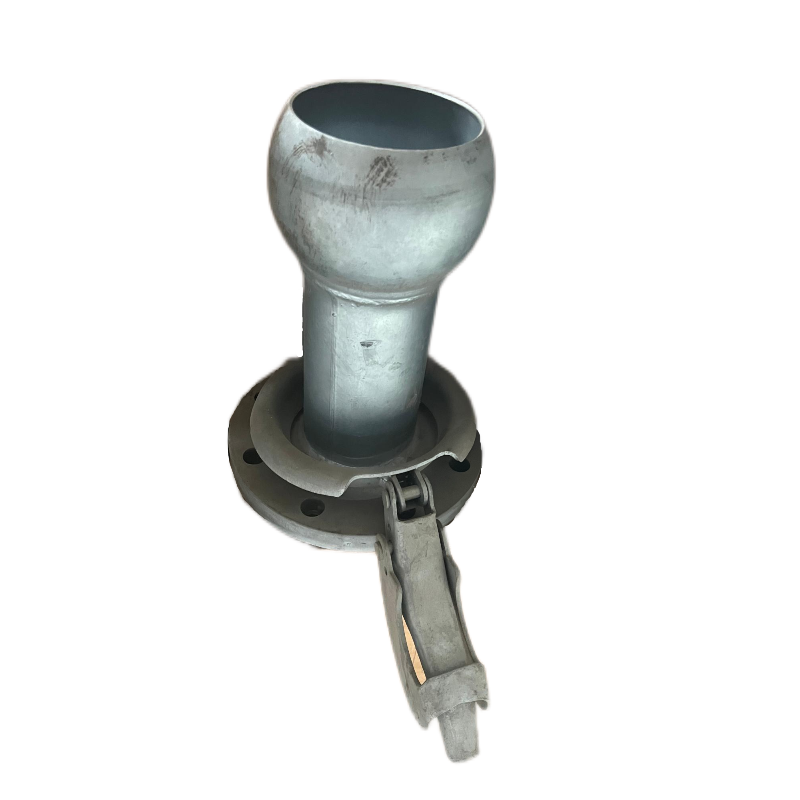

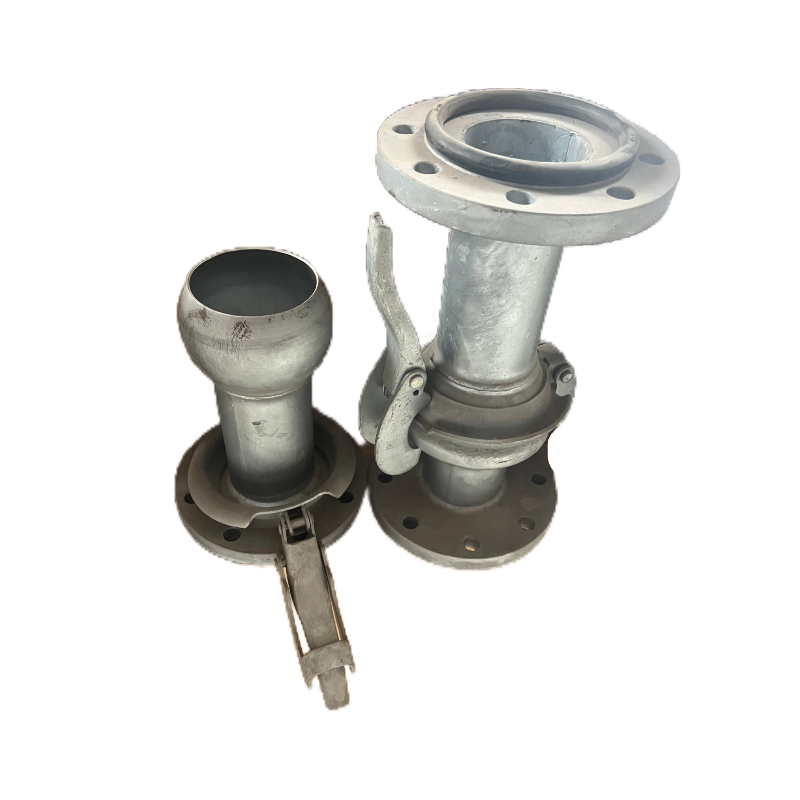

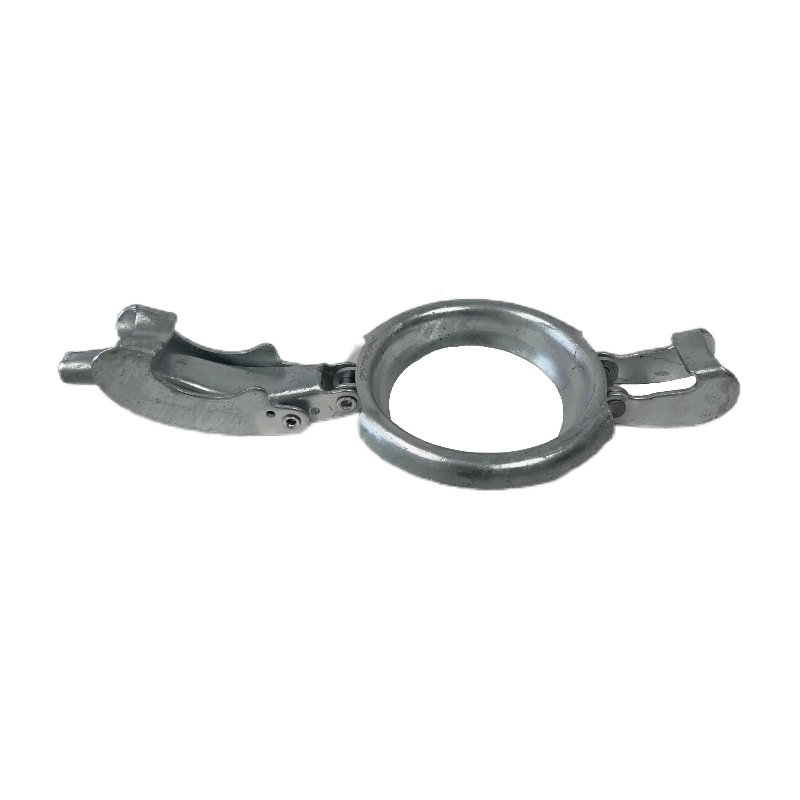

Bauer coupling with flange is mainly composed of a male half with a flange, a female half with a flange, a snap ring, and a rubber seal. Made primarily from carbon steel pipes, it undergoes hot-dip galvanizing treatment to extend service life while offering convenient installation and replacement for eco-friendly maintenance. Available in standard sizes ranging from 2 "to 8", the product can also be custom-made according to specific requirements.

FLANGE SIZE(mm)

	A	B	T	C	No. of Bolt Holes	Dia of bolt holes	Weight (kg)
2"	ø150	50	10	114	4	18	1.1
3"	ø185	80	11	146	4	18	1.7
4"	ø215	100	13	178	8	22	2.7
6"	ø280	150	17	235	8	22	5.3
8"	ø335	200	19	292	8	24	7.5
