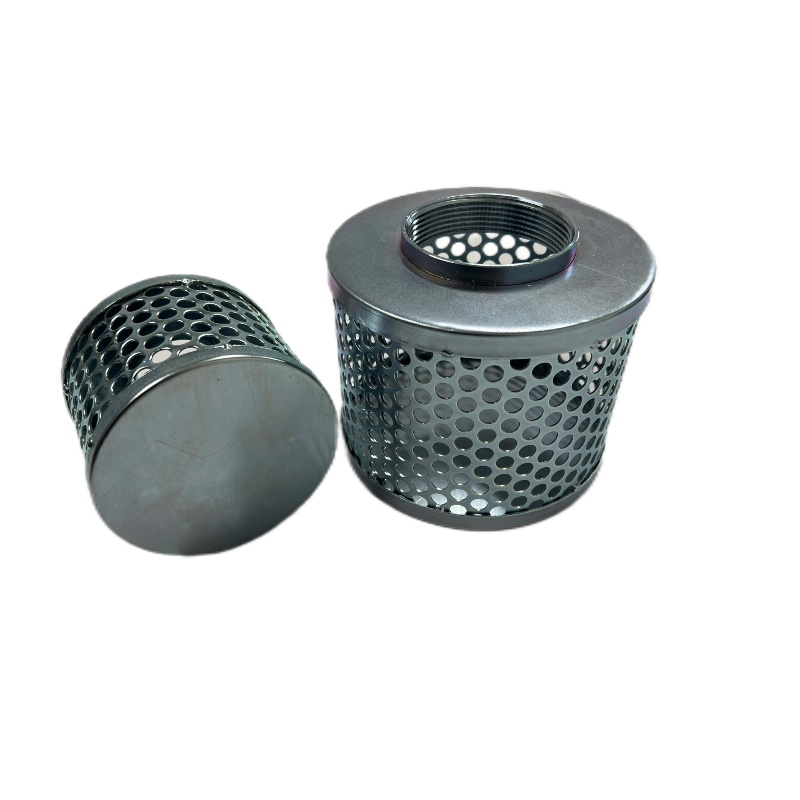

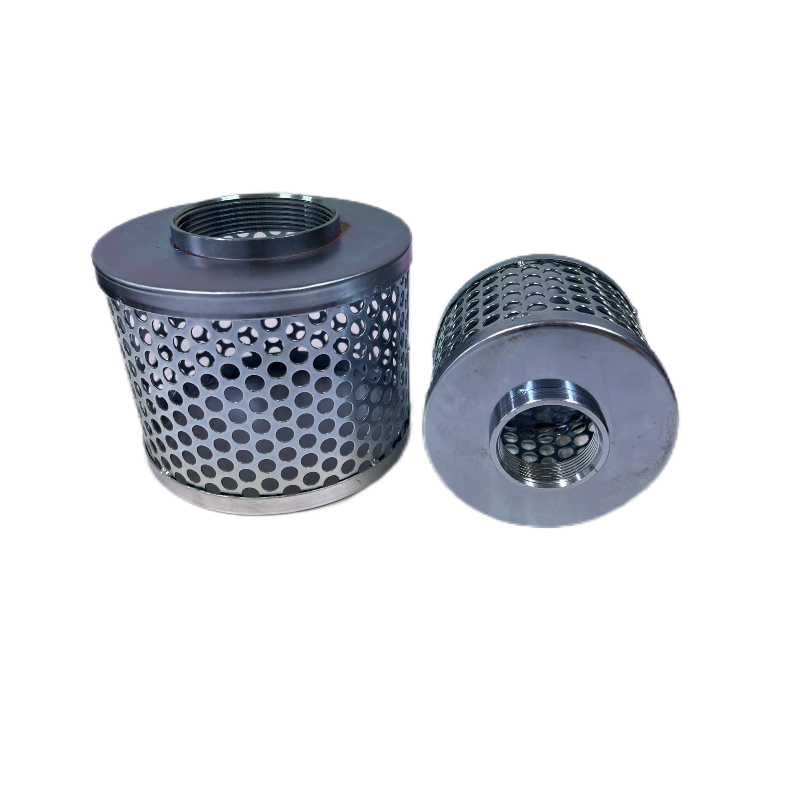

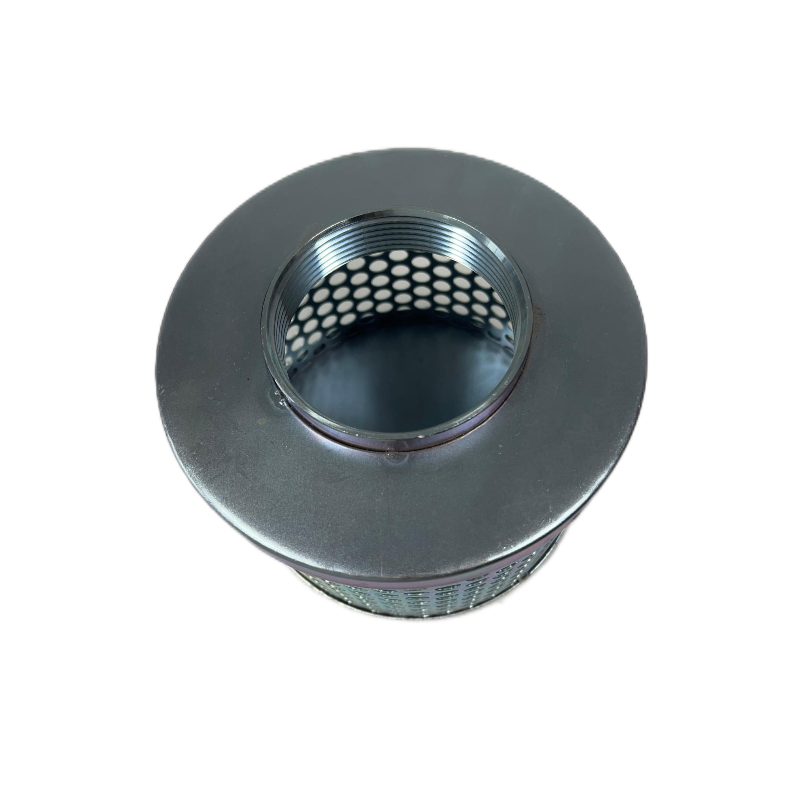

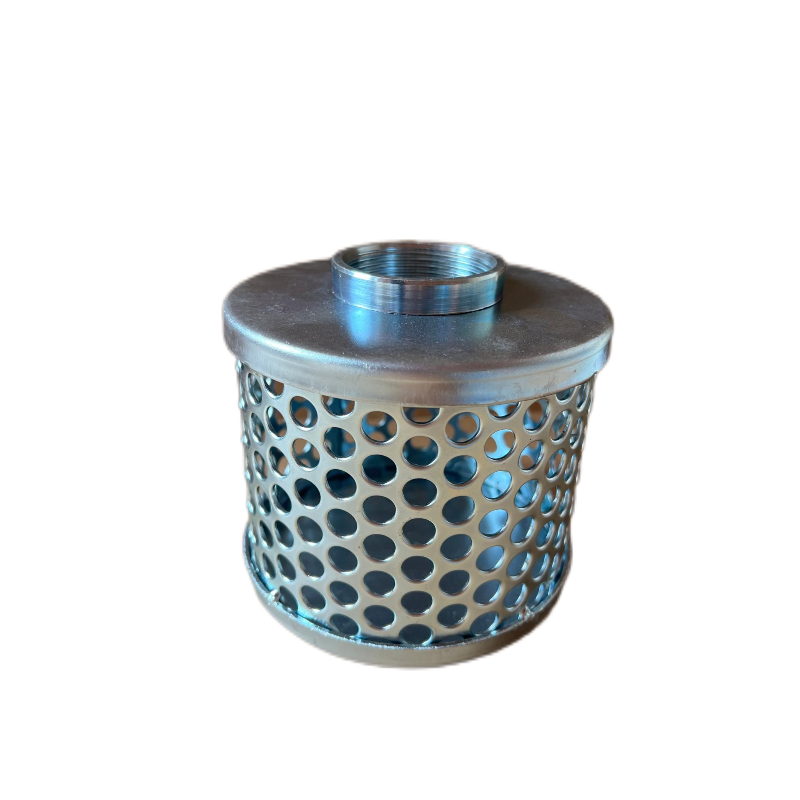

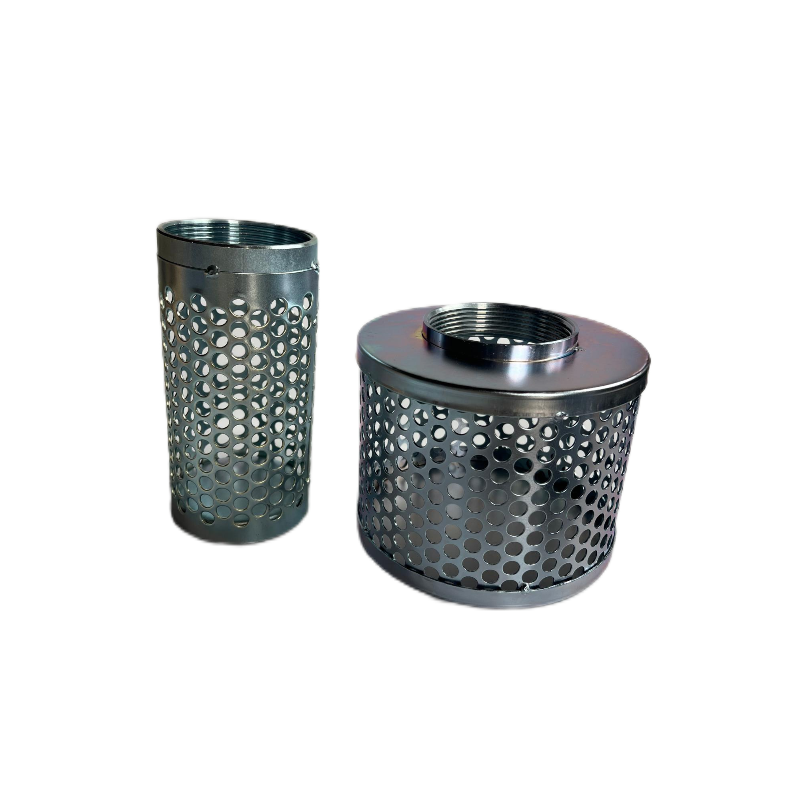

Strainer

Product name: Strainer
Material: carbon steel pipe
Process: casting

Internal thread: BSP
Surface treatment: cold galvanizing
Dimensions: 1” 1-1/2” 2” 2-1/2” 3” 4” 6” 8” 10” 12”
Packaging: carton or iron pallet
Standard: in line with international standards
Customization supported: OEM, ODM
Application: Impurity filtration of drainage equipment

Availability:



Inquire Add to Basket

Detailed list of shell specifications

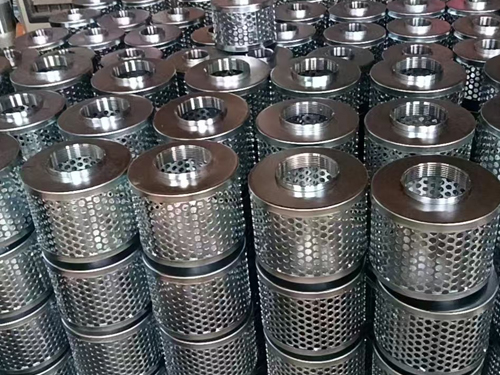

The Strainer is mainly made of carbon steel. After cold galvanizing, the surface is more smooth, and the color is brighter, which can be used and preserved for a long time. At present, the existing size is 1 "-12", which can be specially customized according to different requirements. This product is mainly used in large farmland irrigation equipment and sewage drainage equipment.

Outer diameter and inner tooth size of dust cover tube Unit: mm
specifications	Pipe				Internal teeth
	A+H	A	B	I	C	D	E	F	J	G	H
	Pipe to the bottom	Pipe length	Pipe thickness	Pipe outside diameter	Outer diameter of dental canal	Total length of dental canal	Extension of dental canal	Filter aperture	Filter hole spacing	Outer diameter of the body	Body height	Filter thickness
1″		50	1.5			19	8
1-1/2″	150	60	2	38	53.5	20	8	9.5	13	125	90	1.2
2″	161	60	2	50	63.5	19.5	8	9.5	13	151	101	1.2
2-1/2″	182	80	2.5	64	76	23	8	9.5	13	151	102	1.2
3″	243	110	3	76.2	95	24	8	9.5	13	177	133	1.2
4″	253	120	3	102	119	26	8	9.5	13	177	133	1.2
6″	408	178	5	153	178	27	14	25	32	230	230	1.6
8″	514	229	6	203	232	42	18	25	32	283	285	2
10〞										320	320	2
12″										400	400	2
