Bauer Coupling With KC

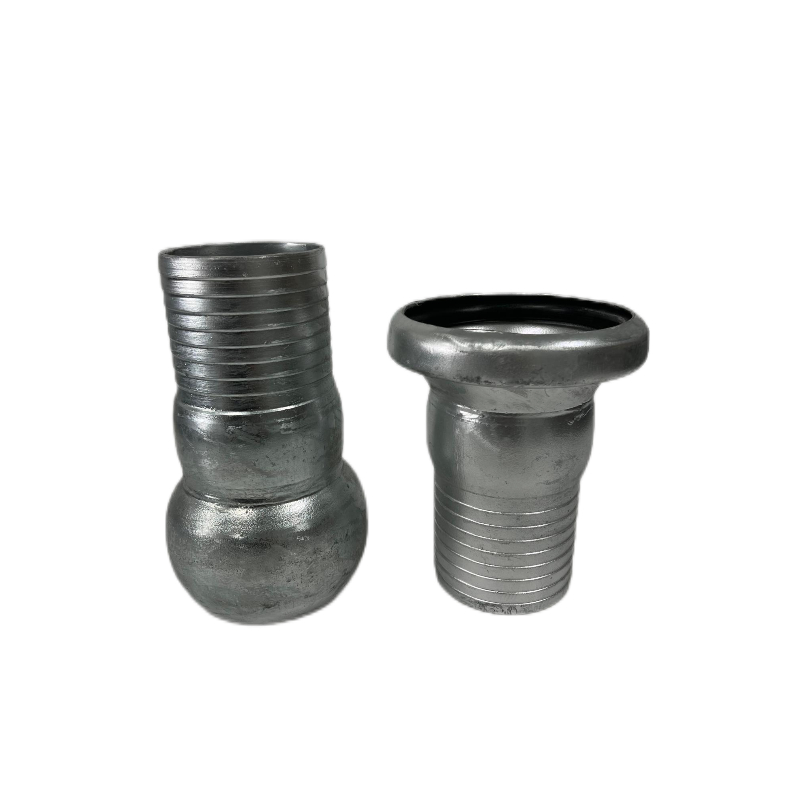

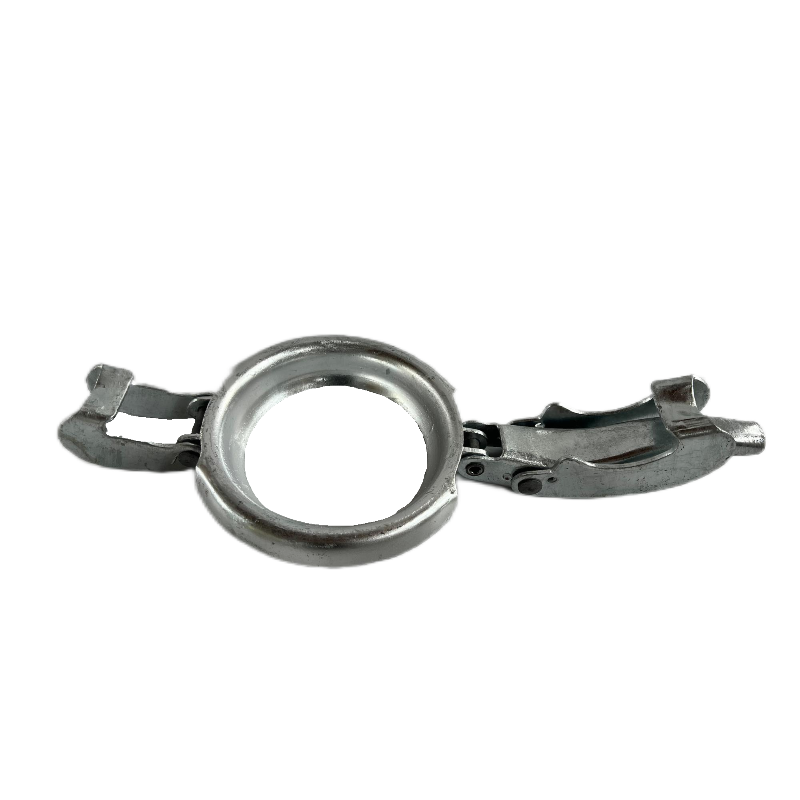

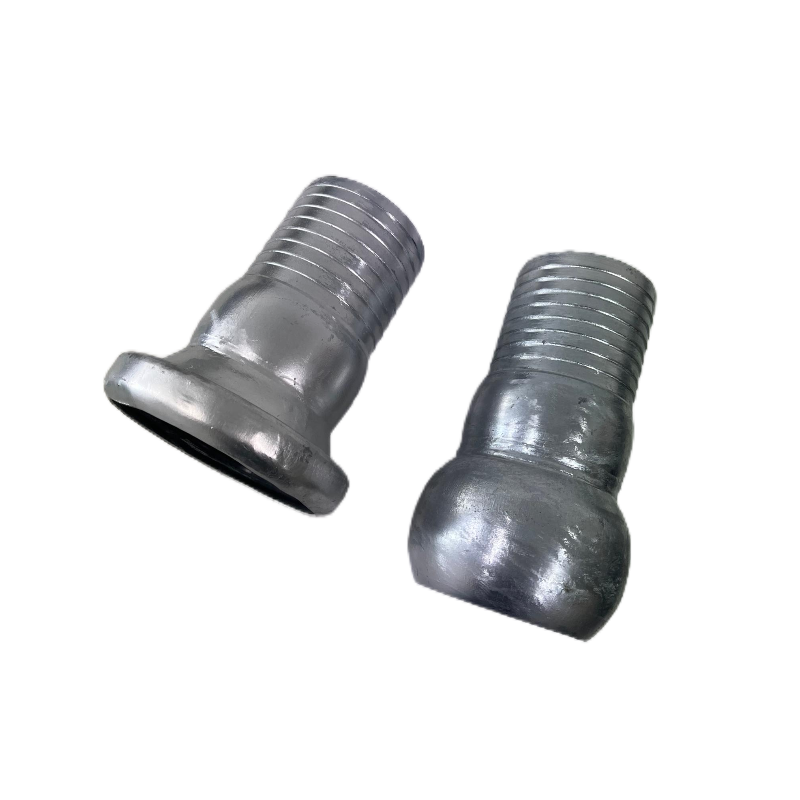

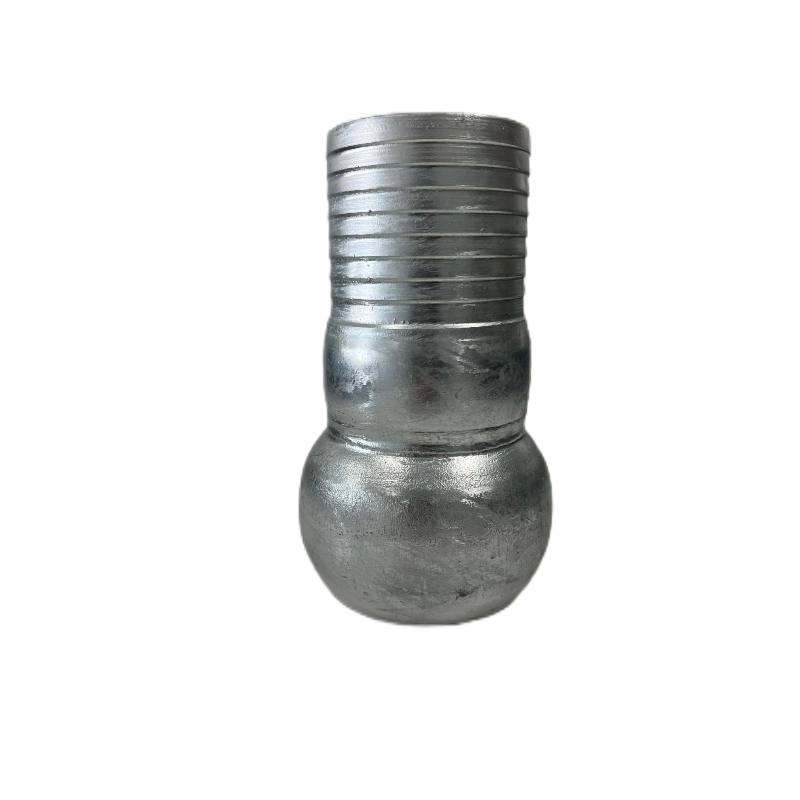

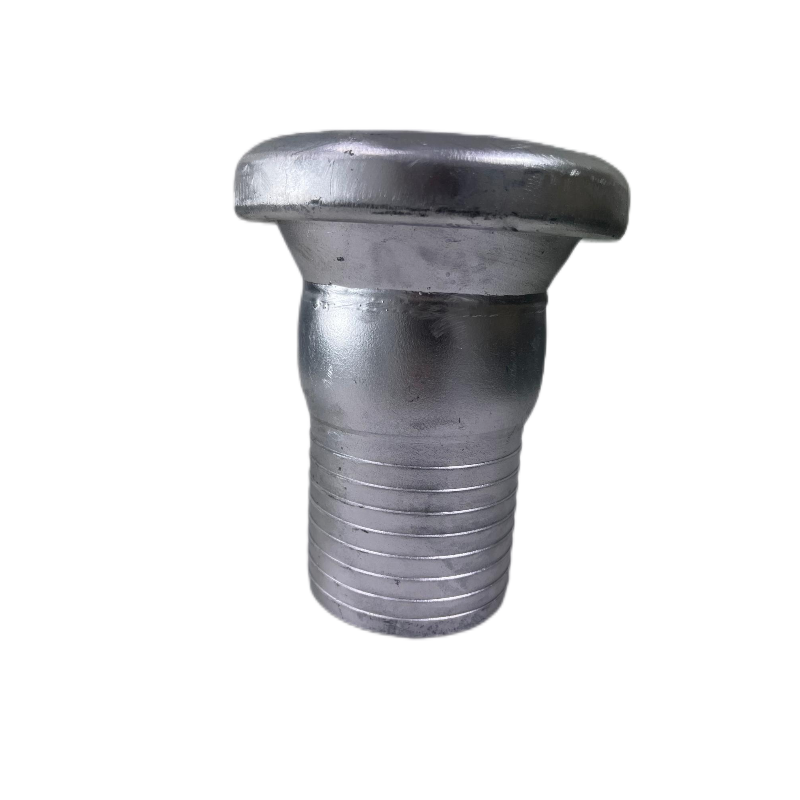

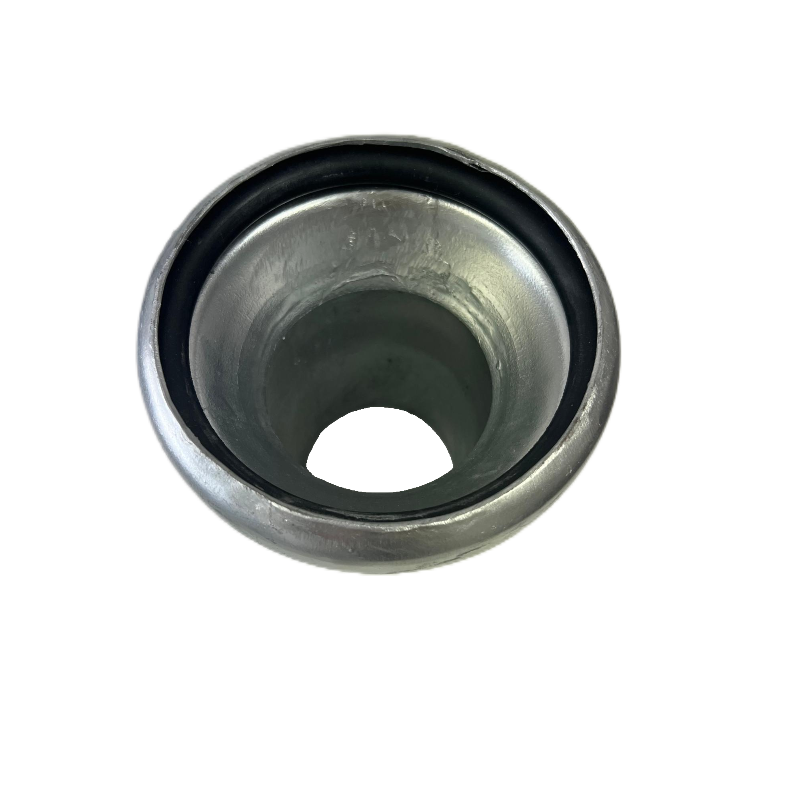

Bauer coupling with kc is mainly composed of a male half assembly with the KC designation, a female half assembly with the KC designation, a snap ring, and a rubber seal. The primary material is carbon steel pipe, which undergoes hot-dip galvanizing treatment to extend service life while ensuring easy installation and replacement for greater environmental sustainability. Current available sizes range from 2 "to 8", with custom orders customizable according to specific requirements.

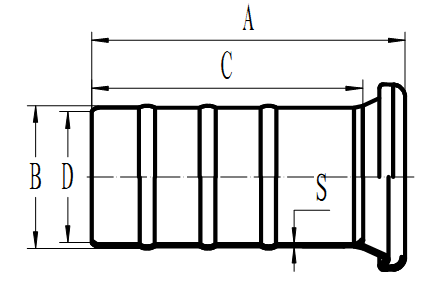

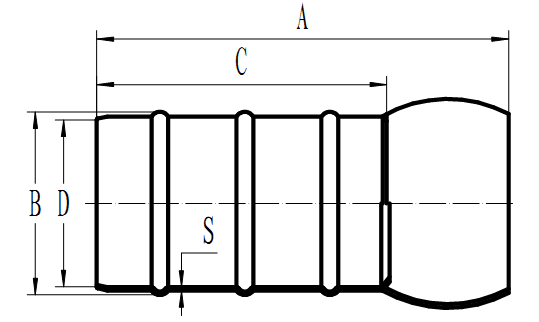

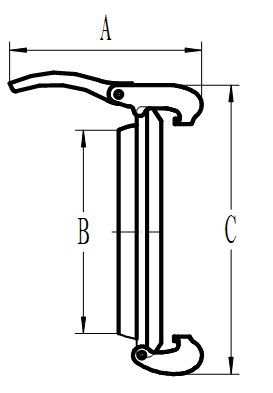

Specification	A	B	C	D	S	A	B	C	D	S	A	B	C
2”	166	54	112	51	2	55	52	50	70	1.2	182	62	130
3”	198	80	132	77	2	66	78	78	99	1.2	229	83	187
3-1/2”	213	90	140	87	2	84	89	86	120	2	230	110	202
4”	292	103.5	194	100	2	103	108	110	144	2	282	119	243
6”	319	154	215	150	2	100	154	150	179	2	340	168	310
8”	372	205.5	250	200	2	121	196	200	229	2	340	235	365

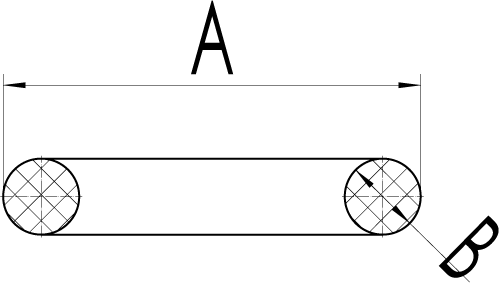

Specification	A	B	C	D	S	A	B	C	D	S	A	B	-
2”	146	54	112	51	2	34	50	71	83	1.2	81	9.5
3”	164	80	132	77	2	35	78	100	116	1.5	114	13
3-1/2”	180	90	135	87	2	55	86	124	137	2	138.5	14
4”	250	103.5	194	100	2	60	99	147	168	2	164	14
6”	275	154	215	150	2	60	150	182	210	2	210	19
8”	320	205.5	250	200	2	75	195	236	265	2.5	255	18

Note: The outer diameter of the pipe has a tolerance of ±0.3~0.5

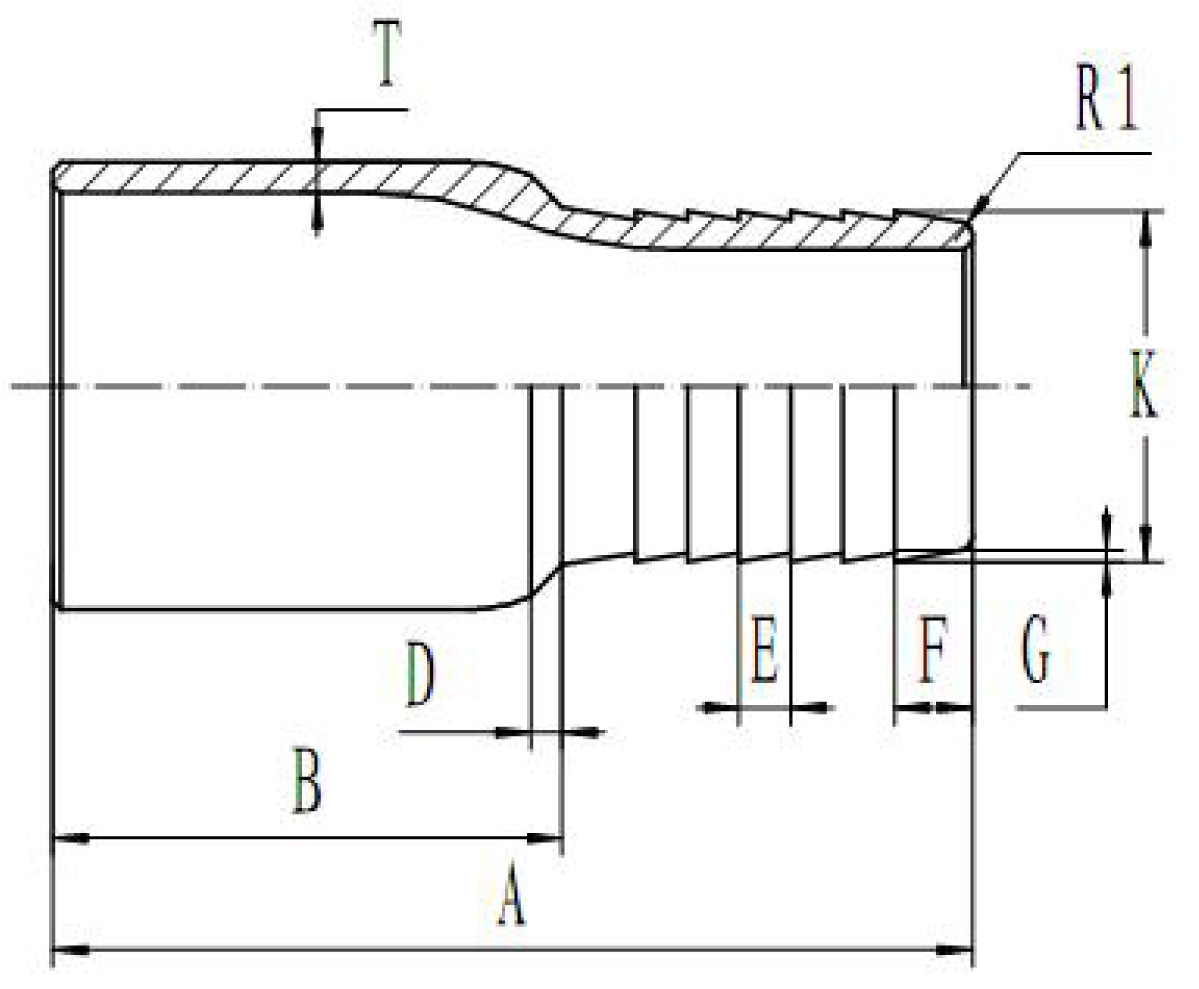

Name	A	B	D	E	F	K	G	T
1/2"	75	45.7	4	4.8	5.3	13.5	0.7	∮22×2.5
3/4"	77	46.2	4	4.8	6.8	19.7	0.8	∮27×2.5
1"	81	50.2	4	4.8	6.8	26	0.8	∮33×3
1-1/4"	88	51	4	7	9	32.4	0.8	∮42×3
1-1/2"	98	52.85	4	7.2	9.12	38.7	0.9	∮48×3
2"	108	58.5	4	7.9	10	51.4	1.1	∮60×3.25
2-1/2"	133	73.5	5	9.5	12	64.76	1.2	∮76×3.75
3"	143	74	5	9.5	12	77.5	1.2	∮89×3.78
4"	168	86	5	10	12	102.8	1.2	∮114×4.2
5"	233	111	5	13.5	14	128.3	1.2	∮140×4.2
6"	252	117	6	15	15	153.6	1.5	∮165×4.2
8"	288	133	6	17	19	204.5	1.5	∮219×5.5
10"	355	175	6	16.2	18	255.3	1.5	∮273×8
12"	360	151	6	18.9	20	305.5	1.8	∮325×8
