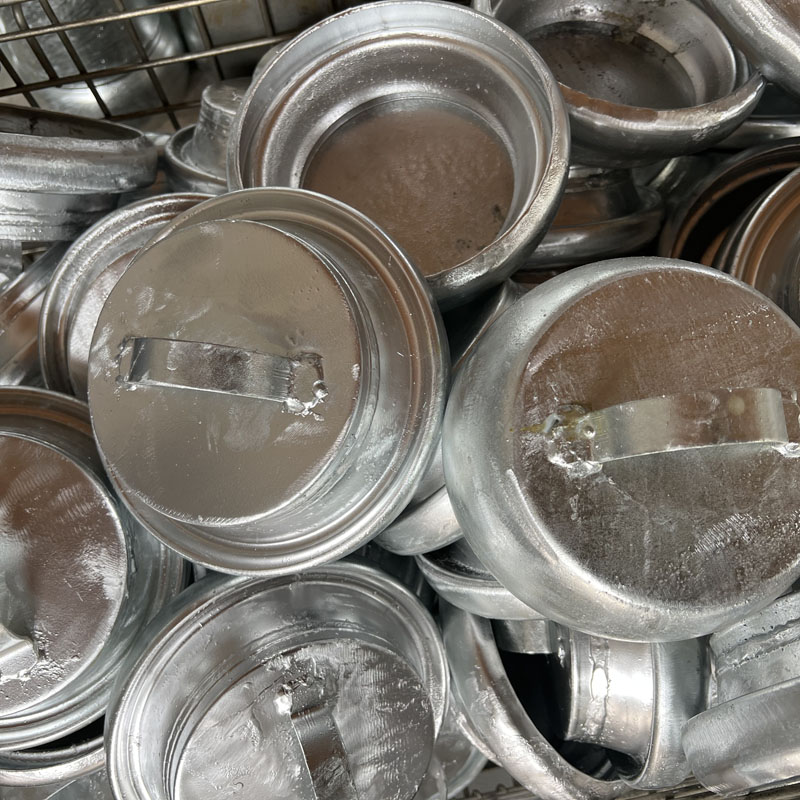

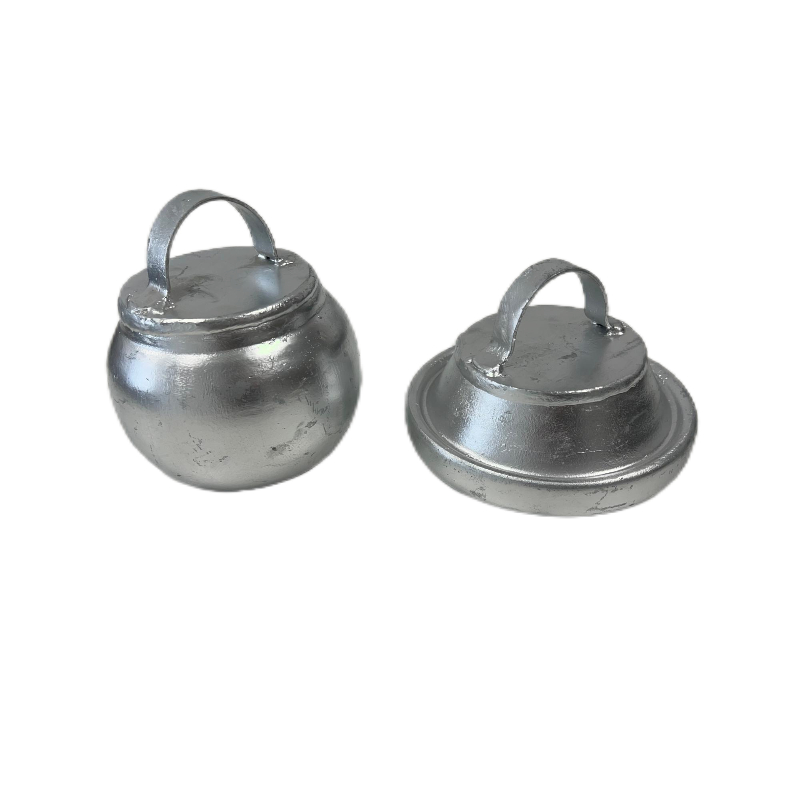

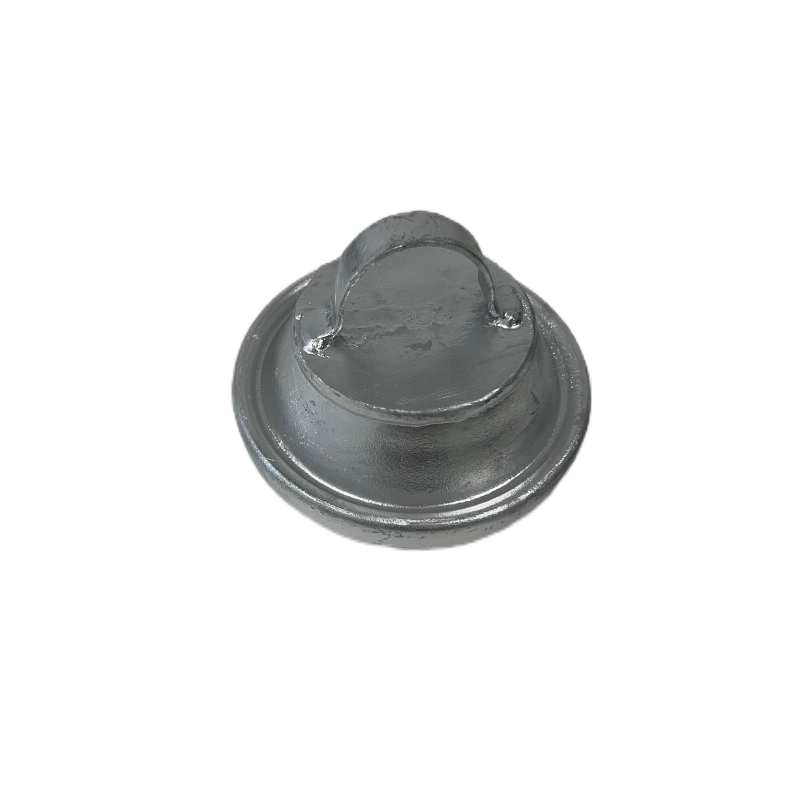

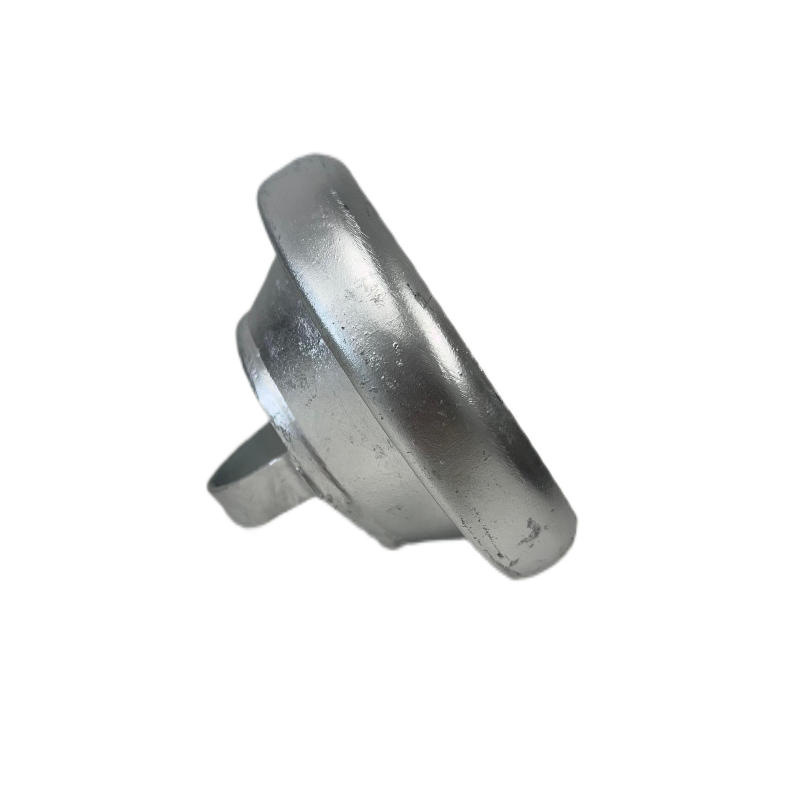

Bauer coupling caps clamp is divided into male caps, female caps. The main material is carbon steel pipe, after hot galvanizing treatment, the service life is longer. The current size is 2 "-8", can also be customized according to different requirements.
|
|
| |||||||||||
| Specification | A | B | C | D | S | A | B | C | D | S | A | B | C |
| 2” | 166 | 54 | 112 | 51 | 2 | 55 | 52 | 50 | 70 | 1.2 | 182 | 62 | 130 |
| 3” | 198 | 80 | 132 | 77 | 2 | 66 | 78 | 78 | 99 | 1.2 | 229 | 83 | 187 |
| 3-1/2” | 213 | 90 | 140 | 87 | 2 | 84 | 89 | 86 | 120 | 2 | 230 | 110 | 202 |
| 4” | 292 | 103.5 | 194 | 100 | 2 | 103 | 108 | 110 | 144 | 2 | 282 | 119 | 243 |
| 6” | 319 | 154 | 215 | 150 | 2 | 100 | 154 | 150 | 179 | 2 | 340 | 168 | 310 |
| 8” | 372 | 205.5 | 250 | 200 | 2 | 121 | 196 | 200 | 229 | 2 | 340 | 235 | 365 |
![]() | ![]() | ![]() | |||||||||||
| Specification | A | B | C | D | S | A | B | C | D | S | A | B | - |
| 2” | 146 | 54 | 112 | 51 | 2 | 34 | 50 | 71 | 83 | 1.2 | 81 | 9.5 | |
| 3” | 164 | 80 | 132 | 77 | 2 | 35 | 78 | 100 | 116 | 1.5 | 114 | 13 | |
| 3-1/2” | 180 | 90 | 135 | 87 | 2 | 55 | 86 | 124 | 137 | 2 | 138.5 | 14 | |
| 4” | 250 | 103.5 | 194 | 100 | 2 | 60 | 99 | 147 | 168 | 2 | 164 | 14 | |
| 6” | 275 | 154 | 215 | 150 | 2 | 60 | 150 | 182 | 210 | 2 | 210 | 19 | |
| 8” | 320 | 205.5 | 250 | 200 | 2 | 75 | 195 | 236 | 265 | 2.5 | 255 | 18 | |
Note: The outer diameter of the pipe has a tolerance of ±0.3~0.5
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
Bauer coupling caps clamp is divided into male caps, female caps. The main material is carbon steel pipe, after hot galvanizing treatment, the service life is longer. The current size is 2 "-8", can also be customized according to different requirements.
|
|
| |||||||||||
| Specification | A | B | C | D | S | A | B | C | D | S | A | B | C |
| 2” | 166 | 54 | 112 | 51 | 2 | 55 | 52 | 50 | 70 | 1.2 | 182 | 62 | 130 |
| 3” | 198 | 80 | 132 | 77 | 2 | 66 | 78 | 78 | 99 | 1.2 | 229 | 83 | 187 |
| 3-1/2” | 213 | 90 | 140 | 87 | 2 | 84 | 89 | 86 | 120 | 2 | 230 | 110 | 202 |
| 4” | 292 | 103.5 | 194 | 100 | 2 | 103 | 108 | 110 | 144 | 2 | 282 | 119 | 243 |
| 6” | 319 | 154 | 215 | 150 | 2 | 100 | 154 | 150 | 179 | 2 | 340 | 168 | 310 |
| 8” | 372 | 205.5 | 250 | 200 | 2 | 121 | 196 | 200 | 229 | 2 | 340 | 235 | 365 |
![]() | ![]() | ![]() | |||||||||||
| Specification | A | B | C | D | S | A | B | C | D | S | A | B | - |
| 2” | 146 | 54 | 112 | 51 | 2 | 34 | 50 | 71 | 83 | 1.2 | 81 | 9.5 | |
| 3” | 164 | 80 | 132 | 77 | 2 | 35 | 78 | 100 | 116 | 1.5 | 114 | 13 | |
| 3-1/2” | 180 | 90 | 135 | 87 | 2 | 55 | 86 | 124 | 137 | 2 | 138.5 | 14 | |
| 4” | 250 | 103.5 | 194 | 100 | 2 | 60 | 99 | 147 | 168 | 2 | 164 | 14 | |
| 6” | 275 | 154 | 215 | 150 | 2 | 60 | 150 | 182 | 210 | 2 | 210 | 19 | |
| 8” | 320 | 205.5 | 250 | 200 | 2 | 75 | 195 | 236 | 265 | 2.5 | 255 | 18 | |
Note: The outer diameter of the pipe has a tolerance of ±0.3~0.5
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
We can send to you by sea/air/express according to you, usually deliver within 15-25 working days after receive deposit.
Yes, we can supply logo Print and package designed based in our MOQ.
