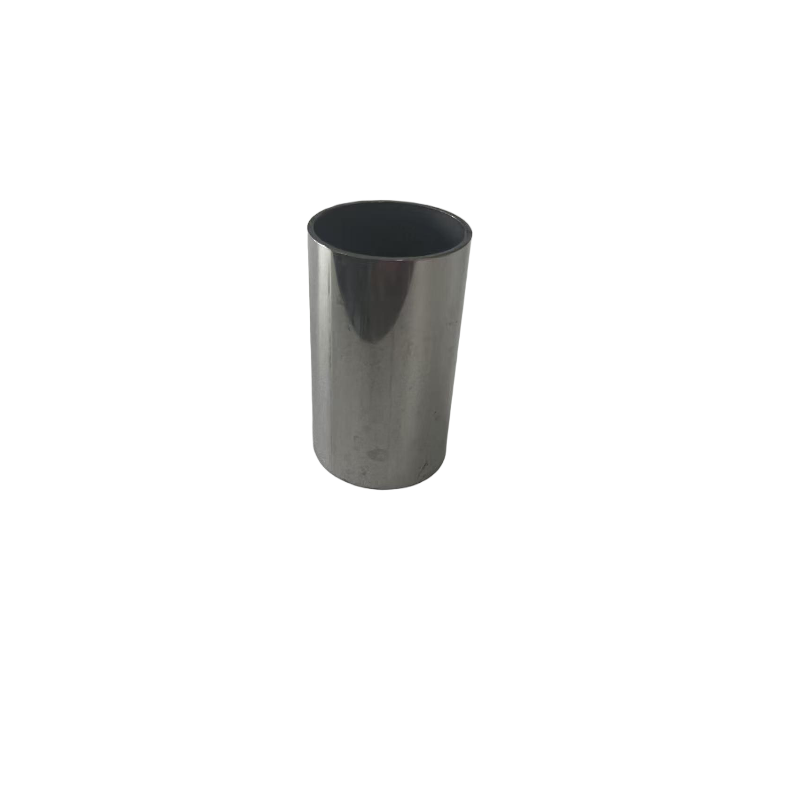

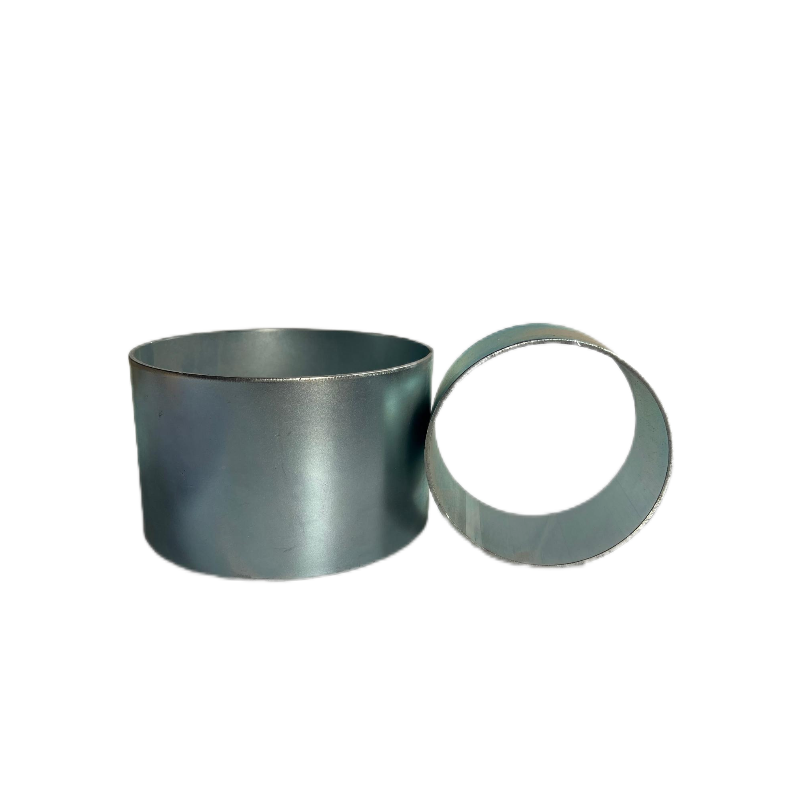

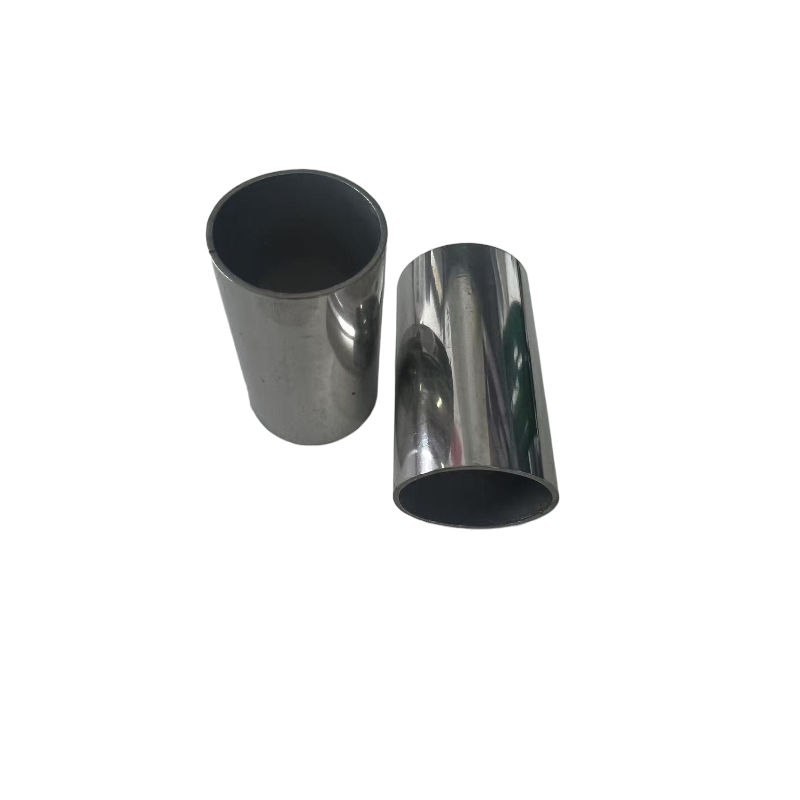

Straight-through Suit

Product name: Straight-through suit
Material: carbon steel pipe, stainless steel pipe, aluminum tube
Process: casting
Surface treatment: cold galvanizing
Dimensions: 3/4” 1” 1-1/4” 1-1/2” 2” 2-1/2” 3” 4” 6”
Packaging: carton
Standard: in line with international standards
Customization supported: OEM, ODM
Application: water hose joints, rubber hoses, and other interfaces
Availability:
Inquire Add to Basket

The straight tube is primarily made of stainless steel and cold galvanized carbon steel. The stainless steel and cold galvanizing processes ensure a smoother surface, extended service life, and reduced deformation. Customizable in dimensions and material selection to meet specific requirements. This product is mainly used for water hose connectors and rubber hose interfaces.


Straight sleeve carbon steel, 304SS clamp size and price 4-1
Part No.  Size Big end (outer diameter size)±0.3 Big end (inner diameter size)±0.3 Thickness Length
Z/P STEEL 304SS SLEEVES FERRULE-Straight socket clamp
CSL-08102-SP/304SS 3/4" 31.6 28.6 1.5 54.3
CSL-08104-SP/304SS 34.8 31.8
CSL-08106-SP/304SS 37.9 34.9
CSL-10104-SP/304SS 1" 34.8 31.8 1.5 58.2
CSL-10105-SP/304SS 36.3 33.3
CSL-10106-SP/304SS 37.9 34.9
CSL-10107-SP/304SS 39.5 36.5
CSL-10108-SP/304SS 41.1 38.1
CSL-10109-SP/304SS 42.7 39.7
CSL-10110-SP/304SS 44.3 41.3
CSL-10111-SP/304SS 45.9 42.9
CSL-10112-SP/304SS 47.5 44.5
CSL-13114-SP/304SS 1-1/4" 50.6 47.6 1.5 59
CSL-13115-SP/304SS 53.8 50.8
CSL-15112-SP/304SS 1-1/2" 47.5 44.5 1.5 60
CSL-15113-SP/304SS 49 46
CSL-15114-SP/304SS 50.6 47.6
CSL-15115-SP/304SS 52.2 49.2
CSL-15200-SP/304SS 53.8 50.8
CSL-15201-SP/304SS 55.4 52.4
CSL-15202-SP/304SS 57 54
CSL-15203-SP/304SS 58.6 55.6
CSL-15204-SP/304SS 60.2 57.2
CSL-15205-SP/304SS 61.7 58.7
CSL-15206-SP/304SS 63.3 60.3
Straight sleeve carbon steel, 304SS clamp size and price 4-2
Part No. : Size Big end (outer diameter size)±0.3 Big end (inner diameter size)±0.3 Thickness Length
Z/P STEEL 304SS SLEEVES FERRULE-Straight socket clamp
CSL-20204-SP/304SS 2" 60.2 57.2 1.5 70.8
CSL-20206-SP/304SS 63.3 60.3
CSL-20207-SP/304SS 64.9 61.9
CSL-20208-SP/304SS 66.5 63.5
CSL-20209-SP/304SS 68.1 65.1
CSL-20210-SP/304SS 69.7 66.7
CSL-20211-SP/304SS 71.3 68.3
CSL-20212-SP/304SS 72.9 69.9
CSL-20213-SP/304SS 74.4 71.4
CSL-20214-SP/304SS 76 73
CSL-20215-SP/304SS 77.6 74.6
CSL-20300-SP/304SS 79.2 76.2
CSL-25300-SP/304SS 2-1/2" 79.2 76.2 1.5 79
CSL-25301-SP/304SS 80.8 77.8
CSL-25302-SP/304SS 82.4 79.4
CSL-25303-SP/304SS 84 81
CSL-25304-SP/304SS 85.6 82.6
CSL-25305-SP/304SS 87.1 84.1
CSL-25306-SP/304SS 88.7 85.7
CSL-25307-SP/304SS 90.3 87.3
CSL-25308-SP/304SS 91.9 88.9
Straight sleeve carbon steel, 304SS clamp size and price 4-3
Part No. : Size Big end (outer diameter size)±0.3 Big end (inner diameter size)±0.3 Thickness Length
Z/P STEEL 304SS SLEEVES FERRULE-Straight socket clamp
CSL-30304-SP/304SS 3" 87.6 82.6 2.5 100
CSL-30306-SP/304SS 90.7 85.7
CSL-30307-SP/304SS 92.3 87.3
CSL-30308-SP/304SS 93.9 88.9
CSL-30309-SP/304SS 95.5 90.5
CSL-30310-SP/304SS 97.1 92.1
CSL-30311-SP/304SS 98.7 93.7
CSL-30312-SP/304SS 100.3 95.3
CSL-30313-SP/304SS 101.8 96.8
CSL-30314-SP/304SS 103.4 98.4
CSL-30315-SP/304SS 105 100
CSL-30400-SP/304SS 106.6 101.6
CSL-40404-SP/304SS 4" 113 108 2.5 106.4
CSL-40406-SP/304SS 116.1 111.1
CSL-40408-SP/304SS 119.3 114.3
CSL-40409-SP/304SS 120.9 115.9
CSL-40410-SP/304SS 122.5 117.5
CSL-40411-SP/304SS 124.1 119.1
CSL-40412-SP/304SS 125.7 120.7
CSL-40413-SP/304SS 127.2 122.2
CSL-40414-SP/304SS 128.8 123.8
CSL-40415-SP/304SS 130.4 125.4
CSL-40500-SP/304SS 132 127
CSL-40501-SP/304SS 133.6 128.6
Straight sleeve carbon steel, 304SS clamp size and price 4-4
Part No. : Size Big end (outer diameter size)±0.3 Big end (inner diameter size)±0.3 Thickness Length
Z/P STEEL 304SS SLEEVES FERRULE-Straight socket clamp
CSL-60604-SP/304SS 6" 164.8 158.8 3 144
CSL-60606-SP/304SS 167.9 161.9
CSL-60608-SP/304SS 171.1 165.1
CSL-60610-SP/304SS 174.3 168.3
CSL-60612-SP/304SS 177.5 171.5
CSL-60614-SP/304SS 180.6 174.6
CSL-60700-SP/304SS 183.8 177.8
CSL-60702-SP/304SS 187 181
CSL-60704-SP/304SS 190.2 184.2
CSL-60706-SP/304SS 193.3 187.3


0f516b4c73d910887d2330c634987eb 1d5a95552c9f9176425e885cdbf2165 c86d2c59ee02d7a8995a0f6b268c912
7ef87e7f901b1385e07d21eb07b5300 3c7f36c506ca1298a86d99f658463cb f6f97b9e81fceb4670213a6912ca947
