Miller Coupling

Product name: Miller Coupling
Composition: male half, female half, buckle and rubber ring
Other accessories: male single body, female single body
Material: carbon steel pipe, stainless steel pipe
Process: casting
Surface treatment: hot dip galvanizing
Dimensions: 3” 4” 6” 8” 10” 12”
Packaging: carton or iron pallet
Standard: in line with international standards
Customization supported: OEM, ODM
Application: connection of large farm irrigation equipment and drainage equipment

Availability:



Inquire Add to Basket

Detailed list of shell specifications

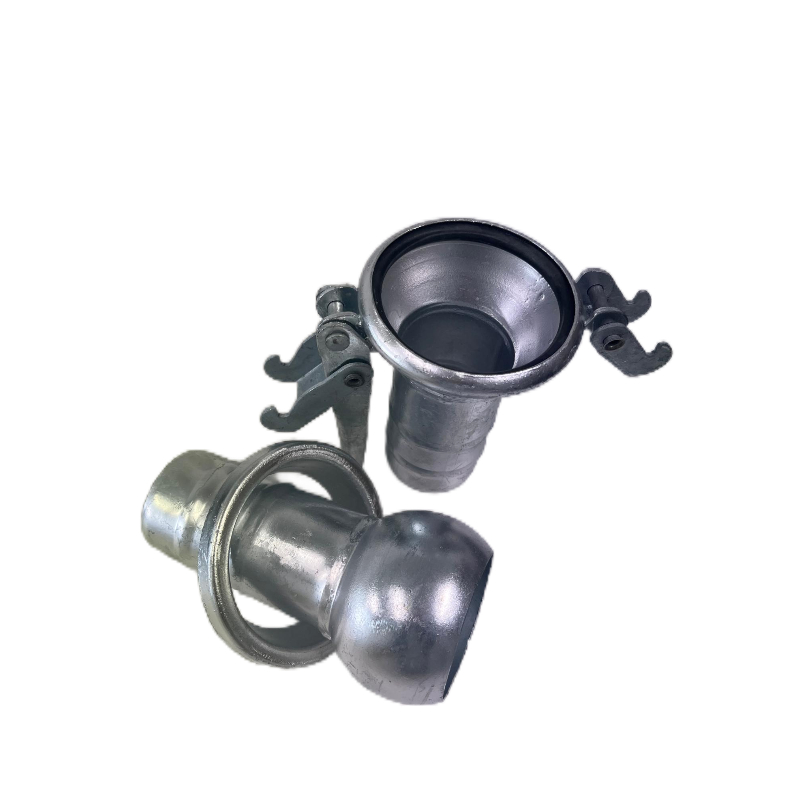

Miller coupling is mainly composed of male half group, the female half group is composed of ring and rubber ring. The main material is carbon steel pipe, after the hot-dip galvanizing treatment, the service life is longer, and the installation and replacement is convenient and more environmentally friendly. At present, the existing size is 2 "-12", which can also be specially customized according to different requirements. This product is mainly used for large farmland irrigation and irrigation equipment

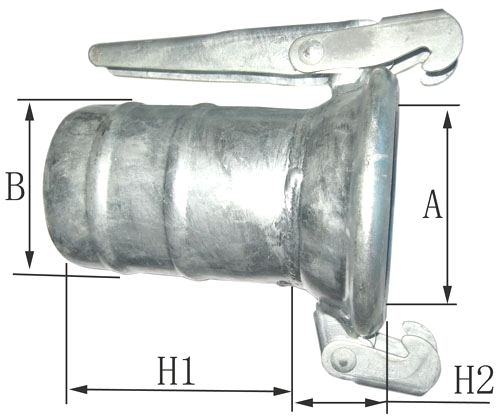

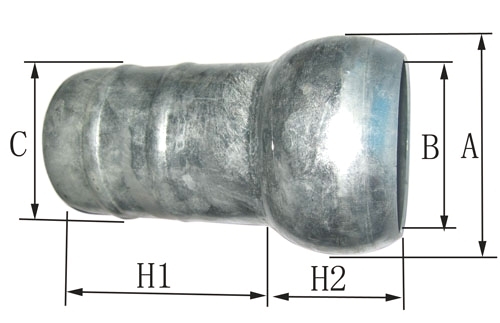

specifications	A		B		C		H1		H2	A	B		H
2”
3”	110		84		76.6		130		78	140	98.8		27.5
4”	129		101		104.5		140		76	160.8	117		32
6”	179		141		154		152		100	223	169		37.5
8”	241		203		203		250		128	296	221		44
10”	298.5		243		254.5		275		150	358	275		66
12”	368		297		305		300		230	444	340		69

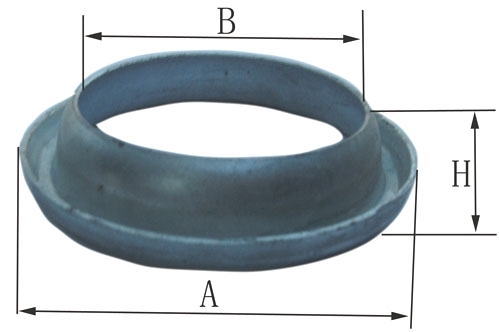

specifications		A		B		H1		H2		A		B
2’’		76		54		110		26		79		9.2
3’’		111.5		76.6		130		52		125.5		11.5
4’’		130.5		104.5		140		50		146		11.5
6’’		182		154		152		66		203		15.2
8’’		246		203		250		87		271		18
10’’		300		254.5		275		115		324		22
12”		370		305		300		120
