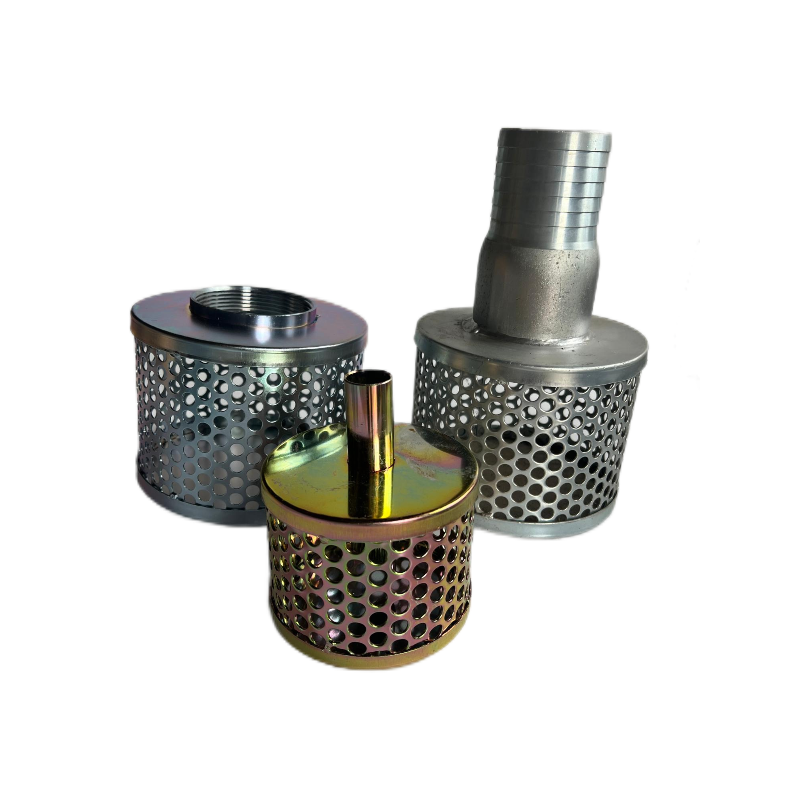

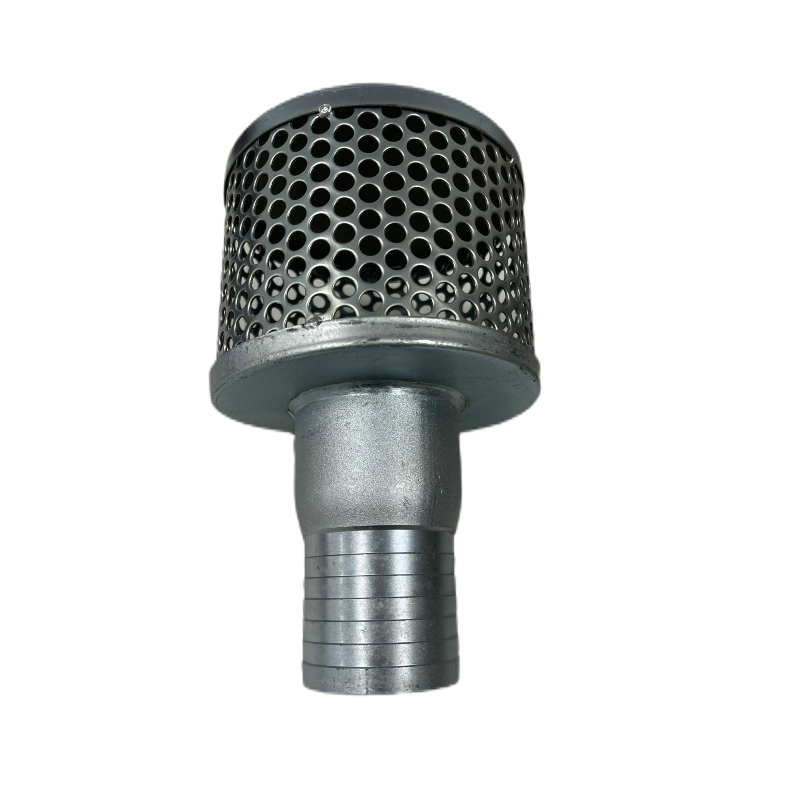

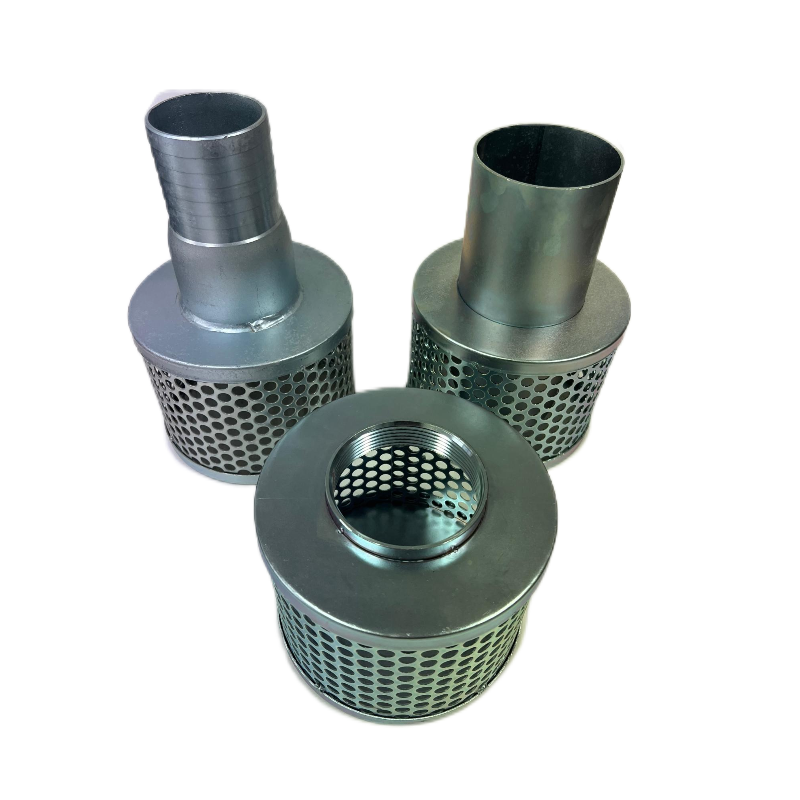

Strainer with KC is mainly carbon steel, which has been treated with cold galvanizing to make the surface smoother and the color brighter, enabling long-term use and preservation. The current available sizes are 1 "-12", which can be specially customized according to different requirements. This product is mainly used in large-scale farmland irrigation equipment and sewage drainage equipment.
Outer diameter and inner tooth size of dust cover tube Unit: mm | ||||||||||||
| specifications | Pipe | Internal teeth | ||||||||||
| A+H | A | B | I | C | D | E | F | J | G | H | ||
| Pipe to the bottom | Pipe length | Pipe thickness | Pipe outside diameter | Outer diameter of dental canal | Total length of dental canal | Extension of dental canal | Filter aperture | Filter hole spacing | Outer diameter of the body | Body height | Filter thickness | |
| 1″ | 50 | 1.5 | 19 | 8 | ||||||||
| 1-1/2″ | 150 | 60 | 2 | 38 | 53.5 | 20 | 8 | 9.5 | 13 | 125 | 90 | 1.2 |
| 2″ | 161 | 60 | 2 | 50 | 63.5 | 19.5 | 8 | 9.5 | 13 | 151 | 101 | 1.2 |
| 2-1/2″ | 182 | 80 | 2.5 | 64 | 76 | 23 | 8 | 9.5 | 13 | 151 | 102 | 1.2 |
| 3″ | 243 | 110 | 3 | 76.2 | 95 | 24 | 8 | 9.5 | 13 | 177 | 133 | 1.2 |
| 4″ | 253 | 120 | 3 | 102 | 119 | 26 | 8 | 9.5 | 13 | 177 | 133 | 1.2 |
| 6″ | 408 | 178 | 5 | 153 | 178 | 27 | 14 | 25 | 32 | 230 | 230 | 1.6 |
| 8″ | 514 | 229 | 6 | 203 | 232 | 42 | 18 | 25 | 32 | 283 | 285 | 2 |
| 10〞 | 320 | 320 | 2 | |||||||||
| 12″ | 400 | 400 | 2 | |||||||||
| ||||||||
| Name | A | B | D | E | F | K | G | T |
| 1/2" | 75 | 45.7 | 4 | 4.8 | 5.3 | 13.5 | 0.7 | ∮22×2.5 |
| 3/4" | 77 | 46.2 | 4 | 4.8 | 6.8 | 19.7 | 0.8 | ∮27×2.5 |
| 1" | 81 | 50.2 | 4 | 4.8 | 6.8 | 26 | 0.8 | ∮33×3 |
| 1-1/4" | 88 | 51 | 4 | 7 | 9 | 32.4 | 0.8 | ∮42×3 |
| 1-1/2" | 98 | 52.85 | 4 | 7.2 | 9.12 | 38.7 | 0.9 | ∮48×3 |
| 2" | 108 | 58.5 | 4 | 7.9 | 10 | 51.4 | 1.1 | ∮60×3.25 |
| 2-1/2" | 133 | 73.5 | 5 | 9.5 | 12 | 64.76 | 1.2 | ∮76×3.75 |
| 3" | 143 | 74 | 5 | 9.5 | 12 | 77.5 | 1.2 | ∮89×3.78 |
| 4" | 168 | 86 | 5 | 10 | 12 | 102.8 | 1.2 | ∮114×4.2 |
| 5" | 233 | 111 | 5 | 13.5 | 14 | 128.3 | 1.2 | ∮140×4.2 |
| 6" | 252 | 117 | 6 | 15 | 15 | 153.6 | 1.5 | ∮165×4.2 |
| 8" | 288 | 133 | 6 | 17 | 19 | 204.5 | 1.5 | ∮219×5.5 |
| 10" | 355 | 175 | 6 | 16.2 | 18 | 255.3 | 1.5 | ∮273×8 |
| 12" | 360 | 151 | 6 | 18.9 | 20 | 305.5 | 1.8 | ∮325×8 |
 |  |  |
 |  |  |
