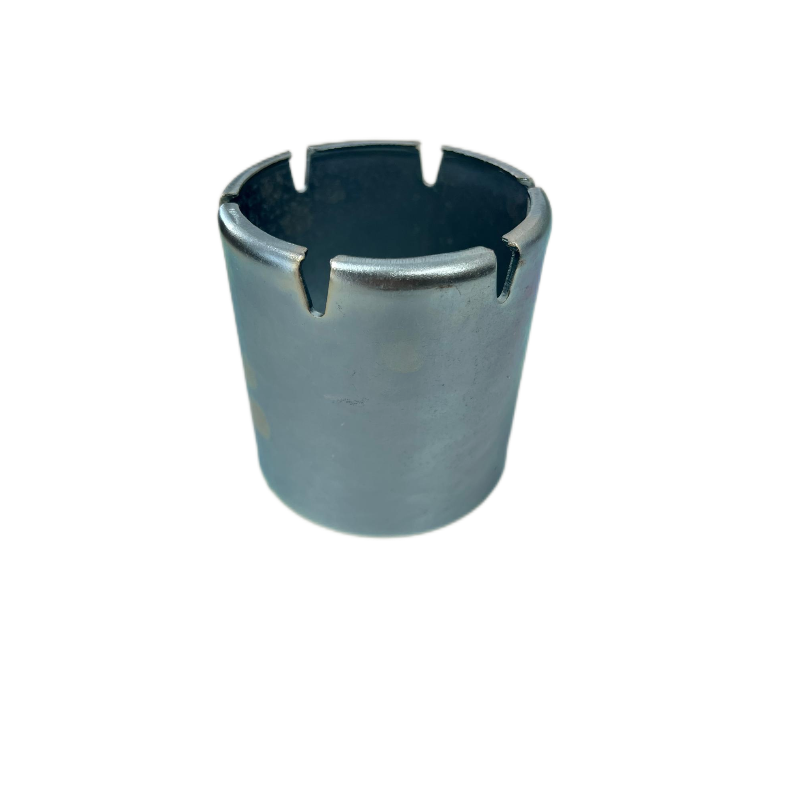

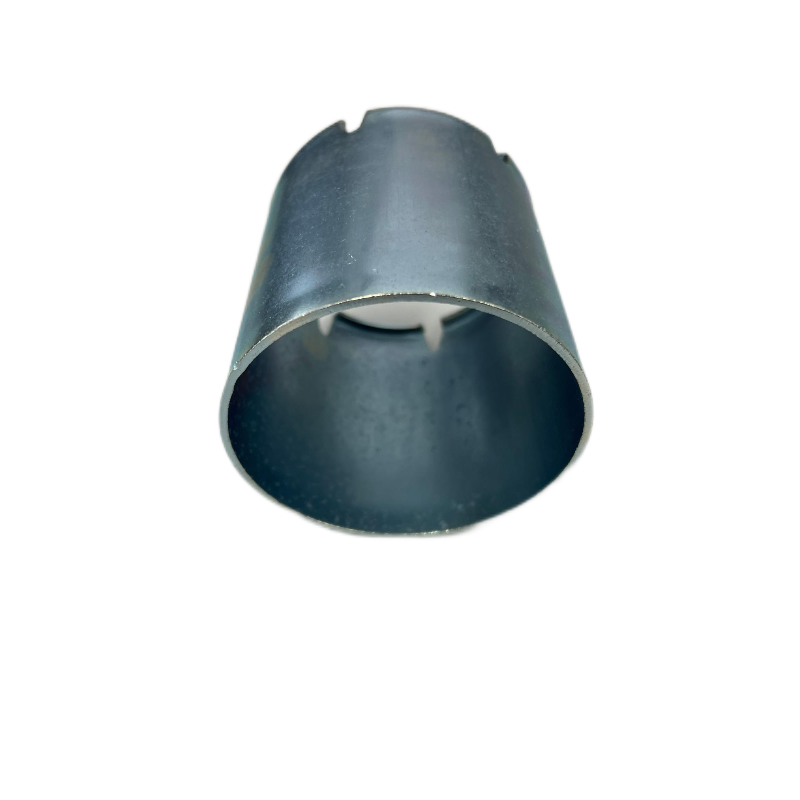

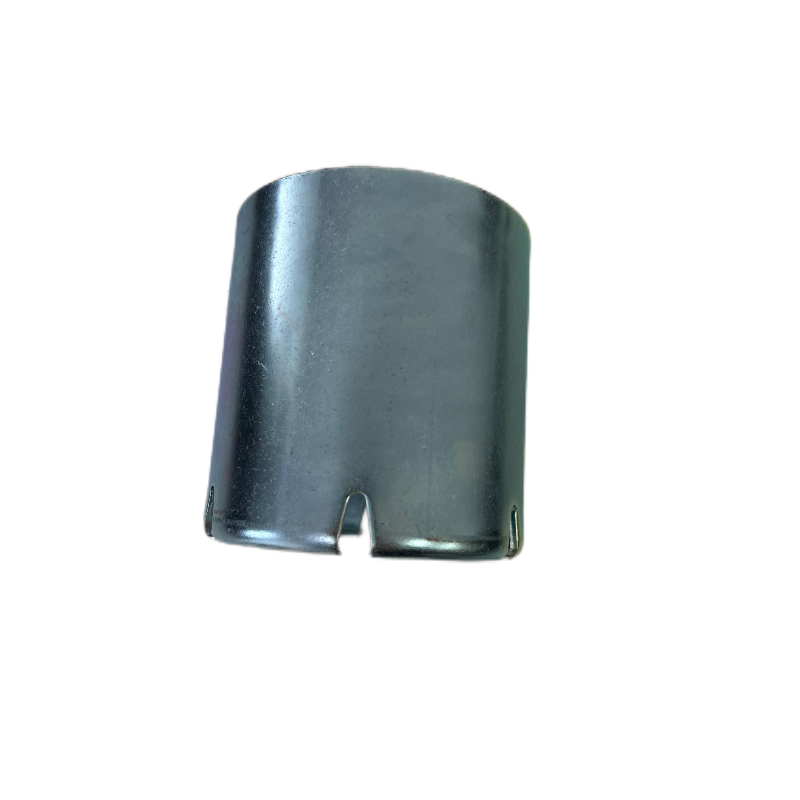

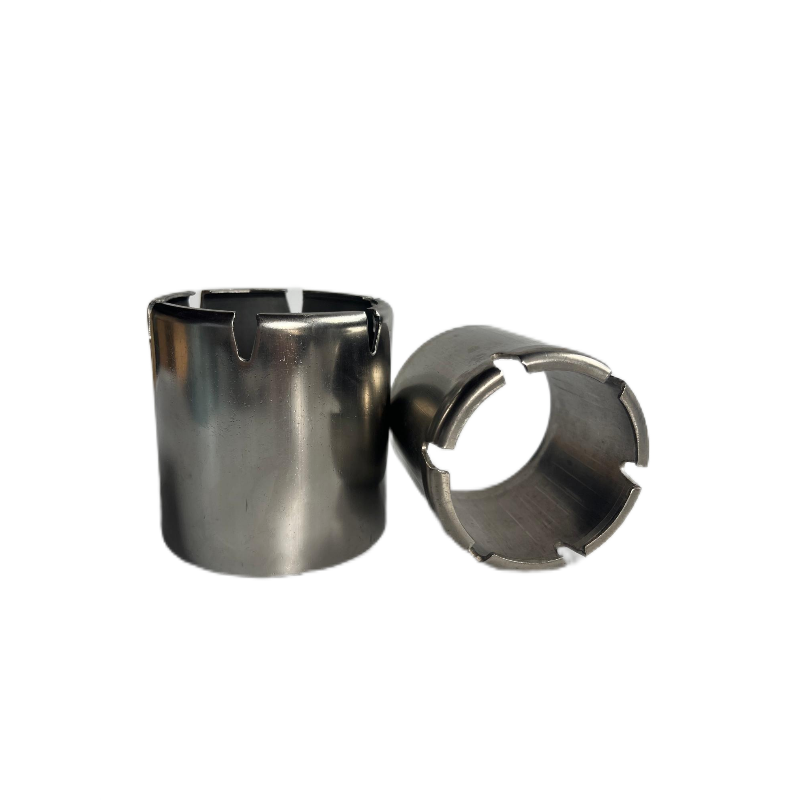

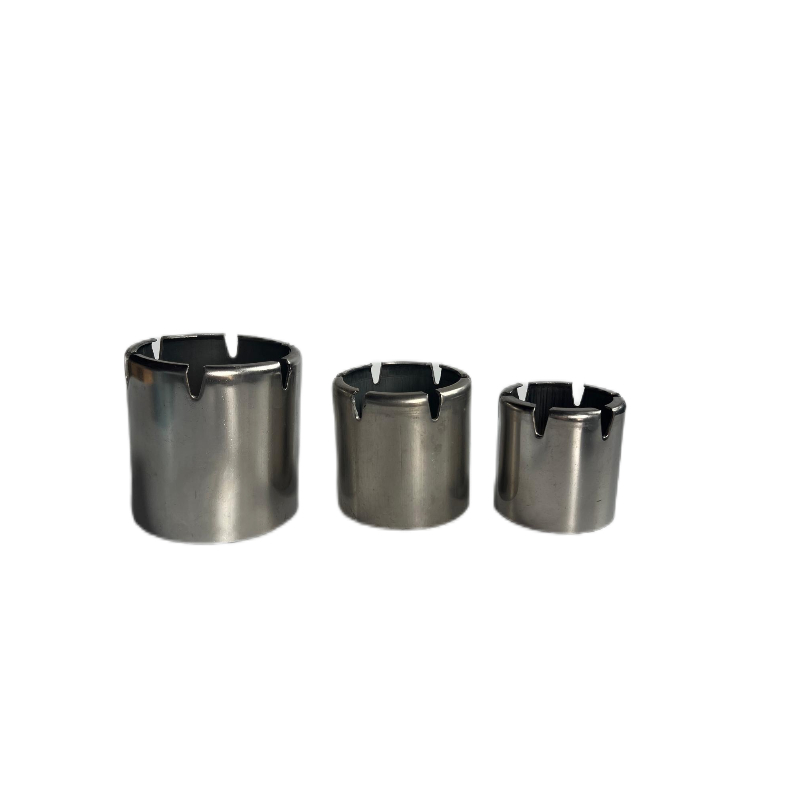

Ferrulr And Straight Sleeve With Six Clamp

Product name: Ferrulr And Straight Sleeve With six clamp
Material: carbon steel pipe, stainless steel pipe
Process: casting
Surface treatment: cold galvanizing
Dimensions: 1/2” 3/4” 1” 1-1/4” 1-1/2” 2” 2-1/2” 3” 4” 6”
Packaging: carton
Standard: in line with international standards
Customization supported: OEM, ODM
Application: water hose joints, rubber hoses, and other interfaces
Availability:
Inquire Add to Basket

The six clamp is primarily made of stainless steel and cold galvanized carbon steel. The stainless steel and cold galvanizing treatment ensures a smoother surface, extended service life, and reduced deformation. Customizable in dimensions and materials according to specific requirements is currently available. This product is mainly used at water hose joints, rubber hoses, and similar connection points.


Number Size Big end (outer diameter size) Big end (inner diameter size) Small mouth inner diameter Thickness Length
±0.3 ±0.3
Z/P STEEL 304SS CRIMP FERRULE-Open six port clamp
CF-05014-SP/304SS 1/2" 25.2 22.2 20.2 1.5 54.3
CF-05015-SP/304SS 26.8 23.8
CF-05100-SP/304SS 28.4 25.4
CF-05101-SP/304SS 30 27
CF-05102-SP/304SS 31.6 28.6
CF-08102-SP/304SS 3/4" 31.6 28.6 26.2 1.5 54.3
CF-08103-SP/304SS 33.2 30.2
CF-08104-SP/304SS 34.8 31.8
CF-08105-SP/304SS 36.3 33.3
CF-08106-SP/304SS 37.9 34.9
CF-08107-SP/304SS 39.5 36.5
CF-08108-SP/304SS 41.1 38.1
CF-10105-SP/304SS 1" 36.3 33.3 32.8 1.5 58.2
CF-10106-SP/304SS 37.9 34.9
CF-10107-SP/304SS 39.5 36.5
CF-10108-SP/304SS 41.1 38.1
CF-10109-SP/304SS 42.7 39.7
CF-10110-SP/304SS 44.3 41.3
CF-10111-SP/304SS 45.9 42.9
CF-10112-SP/304SS 47.5 44.5
CF-10113-SP/304SS 49 46
CF-13111-SP/304SS 1-1/4" 45.9 42.9 39.6 1.5 59
CF-13112-SP/304SS 47.5 44.5
CF-13113-SP/304SS 49 46
CF-13114-SP/304SS 50.6 47.6
CF-13115-SP/304SS 52.2 49.2
Size and price of six port carbon steel and 304SS clamps
Number Size Big end (outer diameter size) Big end (inner diameter size) Small mouth inner diameter Thickness Length
±0.3 ±0.3
Z/P STEEL 304SS CRIMP FERRULE-Open six port clamp
CF-15115-SP/304SS 1-1/2" 52.2 49.2 43.2 1.5 60
CF-15200-SP/304SS 53.8 50.8
CF-15201-SP/304SS 55.4 52.4
CF-15202-SP/304SS 57 54
CF-15203-SP/304SS 58.6 55.6
CF-15204-SP/304SS 60.2 57.2
CF-15205-SP/304SS 61.7 58.7
CF-15206-SP/304SS 63.3 60.3
CF-20208-SP/304SS 2" 67.5~66.5 63.5 56.5 Carbon steel thickness 2mm, stainless steel thickness 1.5mm 70.8
CF-20209-SP/304SS 69.1~68.1 65.1
CF-20210-SP/304SS 70.7~69.7 66.7
CF-20211-SP/304SS 72.3~71.3 68.3
CF-20212-SP/304SS 73.9~72.9 69.9
CF-20213-SP/304SS 75.4~74.4 71.4
CF-20214-SP/304SS 77~76 73
CF-20215-SP/304SS 78.6~77.6 74.6
CF-25300-SP/304SS 2-1/2" 79.2 76.2 70.5 1.5 79
CF-25301-SP/304SS 80.8 77.8
CF-25302-SP/304SS 82.4 79.4
CF-25303-SP/304SS 84 81
CF-25304-SP/304SS 85.6 82.6
CF-25305-SP/304SS 87.1 84.1
CF-25307-SP/304SS 90.3 87.3







Size and price of six port carbon steel and 304SS clamps
Number Size Big end (outer diameter size) Big end (inner diameter size) Small mouth inner diameter Thickness Length
±0.3 ±0.3
Z/P STEEL 304SS CRIMP FERRULE-Open six port clamp
CF-30309-SP/304SS 3" 95.5~94.5 90.5 84.5 Carbon steel thickness 2.5mm, stainless steel thickness 2mm 100
CF-30310-SP/304SS 97.1~96.1 92.1
CF-30311-SP/304SS 98.7~97.7 93.7
CF-30312-SP/304SS 100.3~99.3 95.3
CF-30313-SP/304SS 101.8~100.8 96.8
CF-30314-SP/304SS 103.4~102.4 98.4
CF-30315-SP/304SS 105~104 100
CF-30400-SP/304SS 106.6~105.6 101.6
CF-40409-SP/304SS 4" 120.9~119.9 115.9 110 Carbon steel thickness 2.5mm, stainless steel thickness 2mm 106.4
CF-40410-SP/304SS 122.5~121.5 117.5
CF-40411-SP/304SS 124.1~123.1 119.1
CF-40412-SP/304SS 125.7~124.7 120.7
CF-40413-SP/304SS 127.2~126.4 122.2
CF-40414-SP/304SS 128.8~127.8 123.8
CF-40415-SP/304SS 130.4~129.4 125.4
CF-40500-SP/304SS 132~131 127
CF-40501-SP/304SS 133.6~132.6 128.6
CF-60610-SP/304SS 6" 174.3 168.3 163 3 144
CF-60612-SP-304SS 177.45 171.45
CF-60614-SP/304SS 180.6 174.6
CF-60702-SP/304SS 187 181
CF-60706-SP/304SS 193.3 187.3


0f516b4c73d910887d2330c634987eb 1d5a95552c9f9176425e885cdbf2165 c86d2c59ee02d7a8995a0f6b268c912
7ef87e7f901b1385e07d21eb07b5300 3c7f36c506ca1298a86d99f658463cb f6f97b9e81fceb4670213a6912ca947
