Bauer Coupling Long Pipe

Product name: bauer Coupling Long Pipe
Composition: public monomer, female monomer, long Pipe
Other accessories: ring buckle, middle water outlet
Material: carbon steel pipe
Process: casting
Surface treatment: hot dip galvanizing
Dimensions: 2” 3” 3-1/2” 4” 6” 8”

Length options: 1m, 2m, 3m, 4m, 5m, 6m
Packaging: containerized container
Standard: in line with international standards
Customization supported: OEM, ODM
Application: connection of large farm irrigation equipment and drainage equipment

Availability:



Inquire Add to Basket

Detailed list of shell specifications

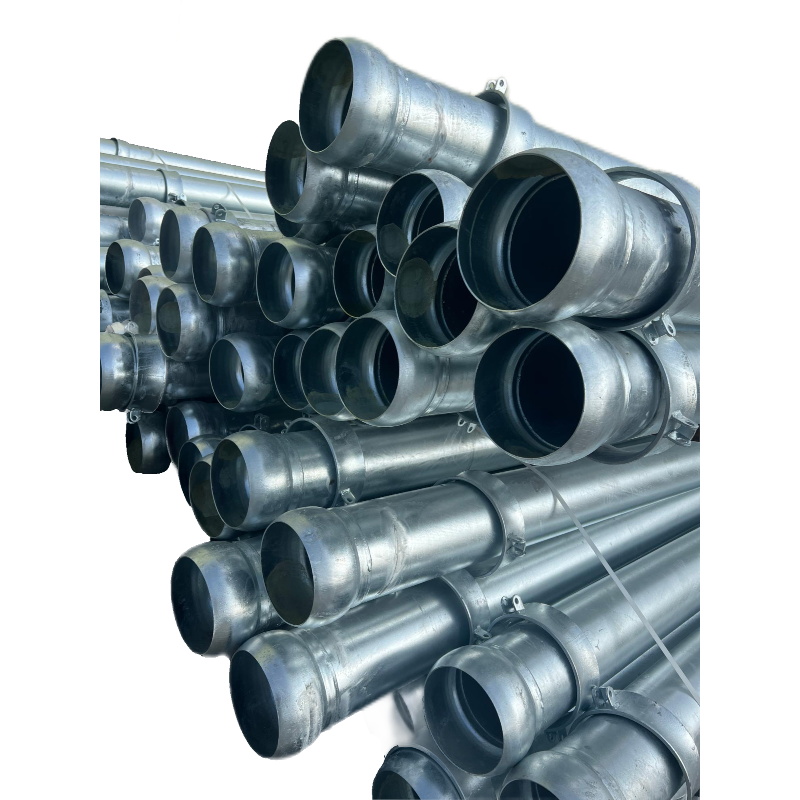

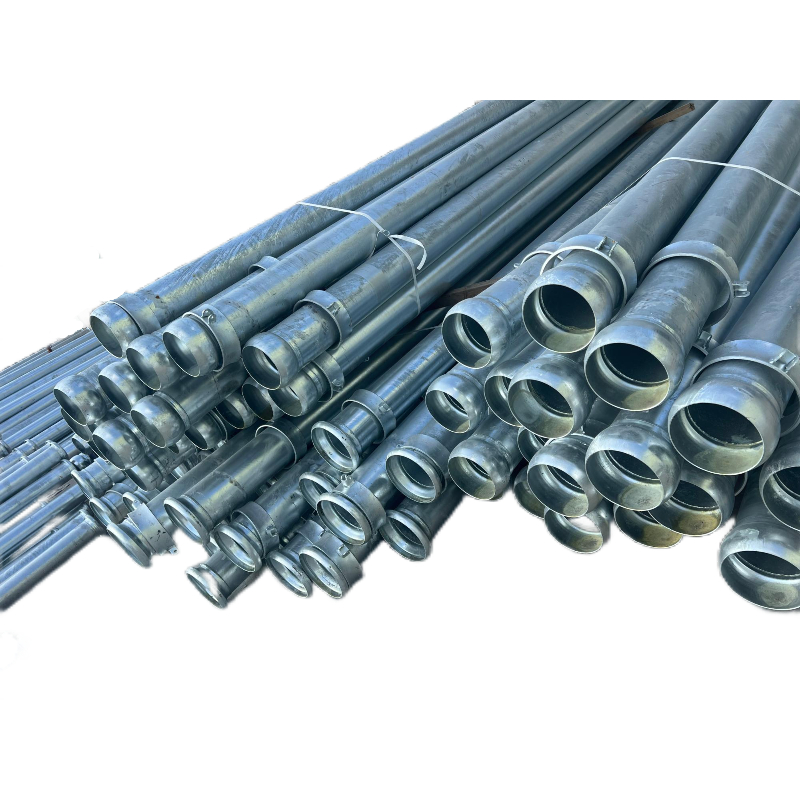

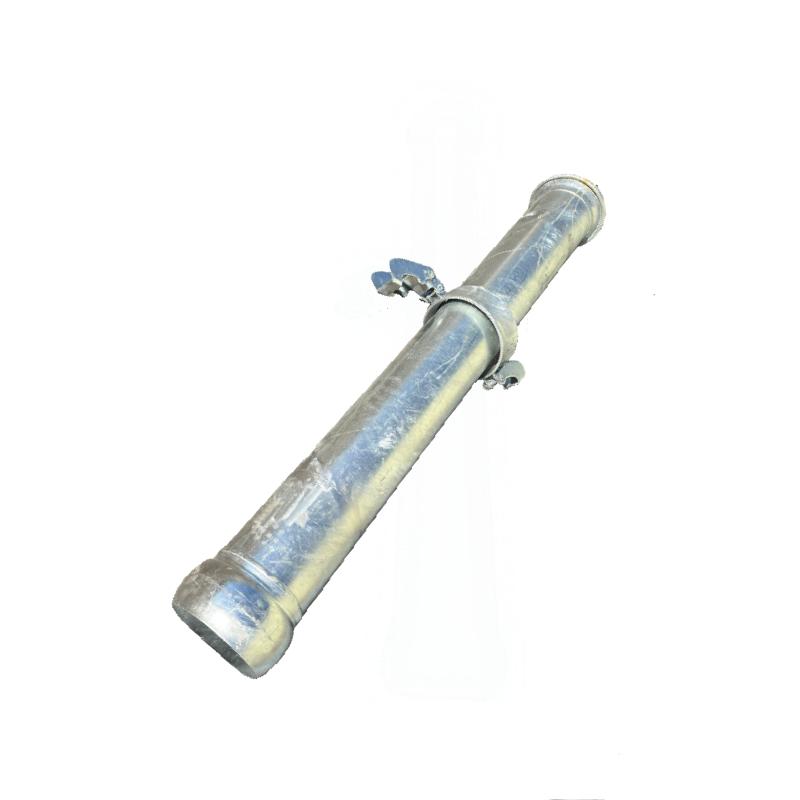

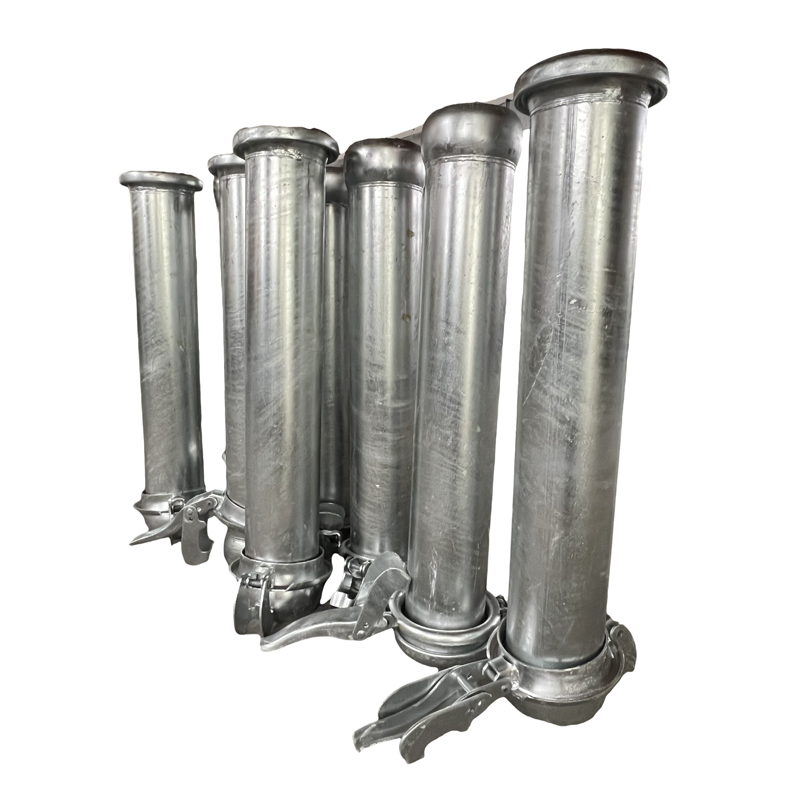

Bauer coupling long pipe is mainly composed of male and female connectors along with 1-6 meter sections.. The main material is carbon steel pipe, after the hot-dip galvanizing treatment, the service life is longer, and the installation and replacement is convenient and more environmentally friendly. At present, the existing size is 2 "-8", which can also be specially customized according to different requirements. This product is mainly used for large farmland irrigation and irrigation equipment.


Specification	A	B	C	D	S	A	B	C	D	S	A	B	C
2”	166	54	112	51	2	55	52	50	70	1.2	182	62	130
3”	198	80	132	77	2	66	78	78	99	1.2	229	83	187
3-1/2”	213	90	140	87	2	84	89	86	120	2	230	110	202
4”	292	103.5	194	100	2	103	108	110	144	2	282	119	243
6”	319	154	215	150	2	100	154	150	179	2	340	168	310
8”	372	205.5	250	200	2	121	196	200	229	2	340	235	365

Specification	A	B	C	D	S	A	B	C	D	S	A	B	-
2”	146	54	112	51	2	34	50	71	83	1.2	81	9.5
3”	164	80	132	77	2	35	78	100	116	1.5	114	13
3-1/2”	180	90	135	87	2	55	86	124	137	2	138.5	14
4”	250	103.5	194	100	2	60	99	147	168	2	164	14
6”	275	154	215	150	2	60	150	182	210	2	210	19
8”	320	205.5	250	200	2	75	195	236	265	2.5	255	18

Note: The outer diameter of the pipe has a tolerance of ±0.3~0.5

Q How about our products?

A Our products are famous for the good quality and we will check it before shipment.
Q How about delivery?

A
We can send to you by sea/air/express according to you, usually deliver within 15-25 working days after receive deposit.
Q DO you provide sample? Is it free or extra?

A Yes, we could offer the sample for free charge if the quantities is not more, but do not pay the cost of freight.
Q What is the minimum order quantity? (MOQ)

A Usually our MOQ is 800 Pieces, but for first cooperation we also accept smaller order.
Q Can I have my own customized product?

A
Yes, we can supply logo Print and package designed based in our MOQ.
Q What is your payment term?

A T/T 30% payment in advance, balance to be paid before shipment. Or L/C. Or West Union.
